FQP5N60C - N-Channel MOSFET

Datasheet Summary

Features

  • ANCE 　　FAST.

📥 Download Datasheet

Datasheet preview – FQP5N60C

Datasheet Details

Part number FQP5N60C
Manufacturer HAOHAI
File Size 465.62 KB
Description N-Channel MOSFET
Datasheet download datasheet FQP5N60C Datasheet

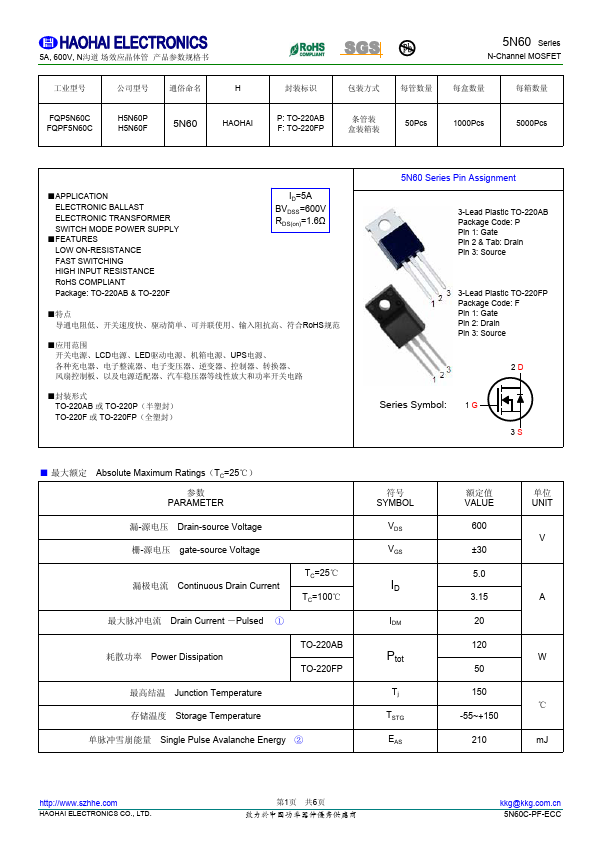

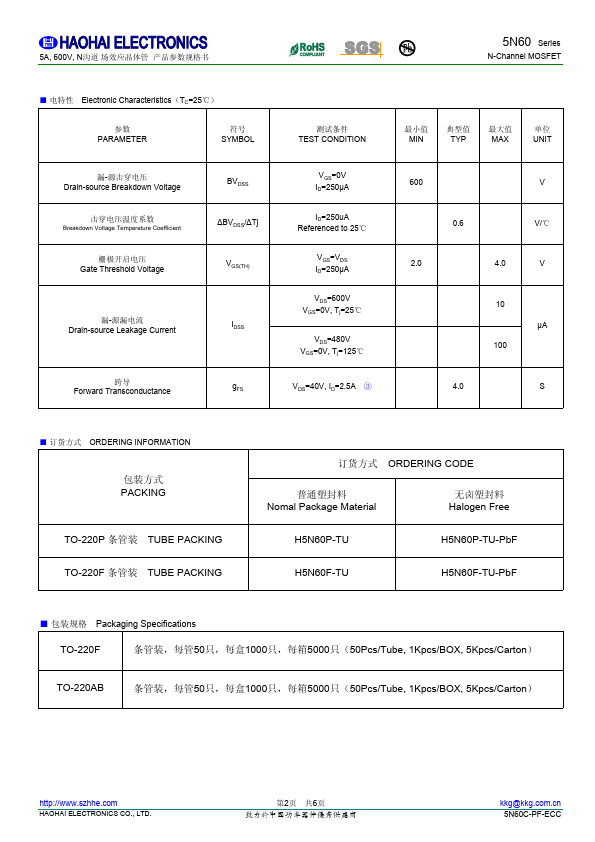

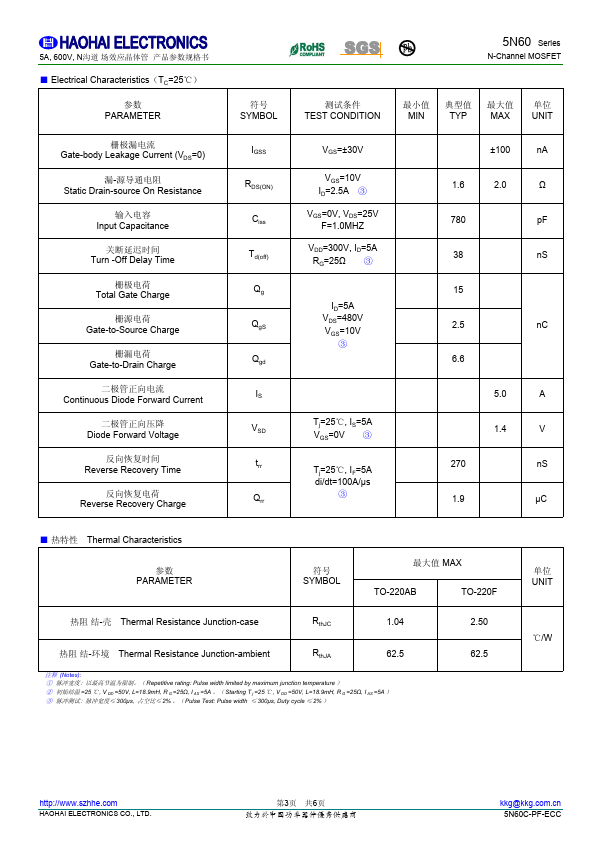

Additional preview pages of the FQP5N60C datasheet.

📁 Similar Datasheet

  • FQP5N60C - 600V N-Channel MOSFET (Fairchild Semiconductor)
  • FQP5N60 - 600V N-Channel MOSFET (Fairchild Semiconductor)
  • FQP5N60 - 5A N-Channel MOSFET (Oucan Semi)
  • FQP5N15 - N-CHANNEL MOSFET (Fairchild Semiconductor)
  • FQP5N20 - 200V N-Channel MOSFET (Fairchild Semiconductor)
  • FQP5N20L - 200V LOGIC N-Channel MOSFET (Fairchild Semiconductor)
  • FQP5N30 - 300V N-Channel MOSFET (Fairchild Semiconductor)
  • FQP5N40 - 400V N-Channel MOSFET (Fairchild Semiconductor)
  • FQP5N50 - 500V N-Channel MOSFET (Fairchild Semiconductor)
  • FQP5N50 - 5A N-Channel MOSFET (Oucan Semi)
Other Datasheets by HAOHAI

Full PDF Text Transcription

Click to expand full text
5A, 600V, N 5N60 Series N-Channel MOSFET H FQP5N60C FQPF5N60C H5N60P H5N60F 5N60 HAOHAI P: TO-220AB F: TO-220FP 50Pcs 1000Pcs 5000Pcs 　■APPLICATION 　　ELECTRONIC BALLAST 　　ELECTRONIC TRANSFORMER 　　SWITCH MODE POWER SUPPLY 　■FEATURES 　　LOW ON-RESISTANCE 　　FAST SWITCHING 　　HIGH INPUT RESISTANCE 　　RoHS COMPLIANT 　　Package: TO-220AB & TO-220F ID=5A BVDSS=600V RDS(on)=1.
