GM2623 - P-Channel Enhancement-Mode MOSFETs SMD

HAOHAI

📥 Download Datasheet

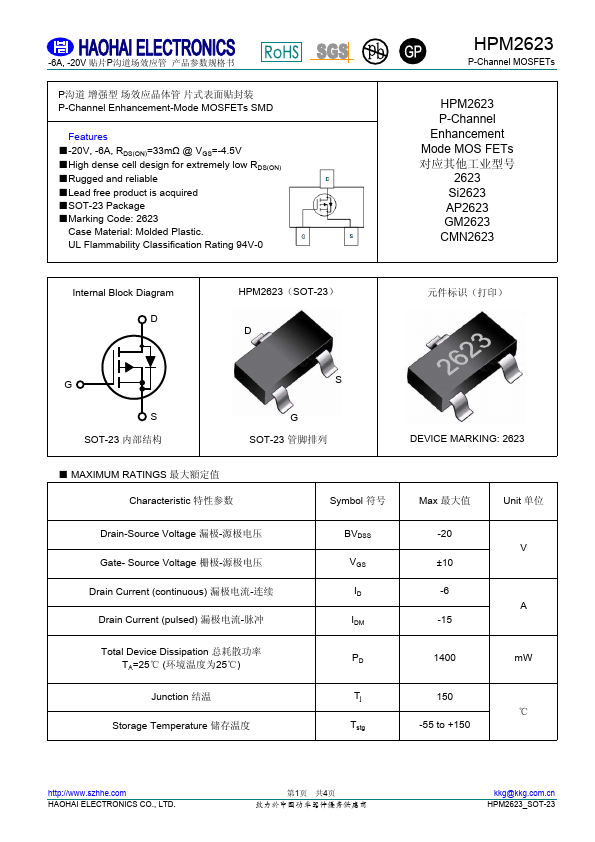

GM2623 Datasheet Preview — Preview of GM2623 PDF

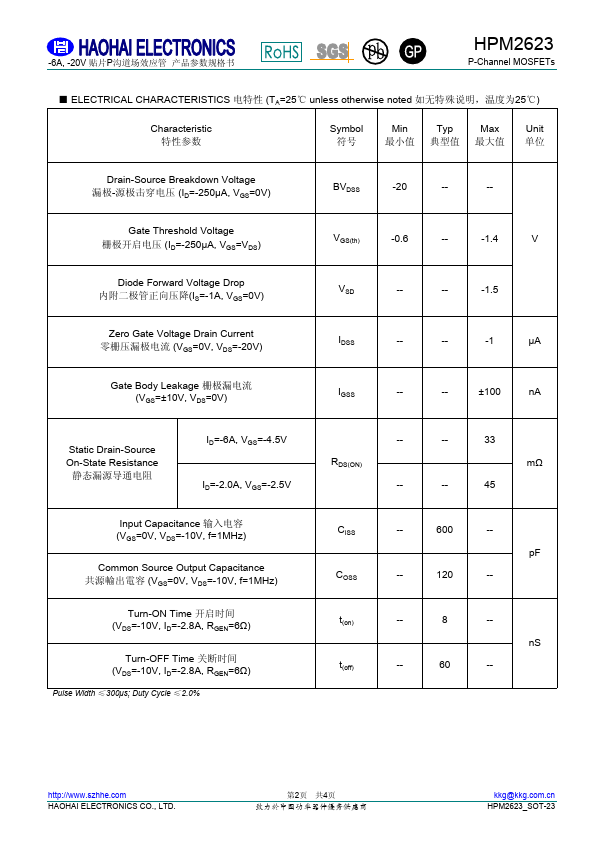

datasheet Preview Page 2

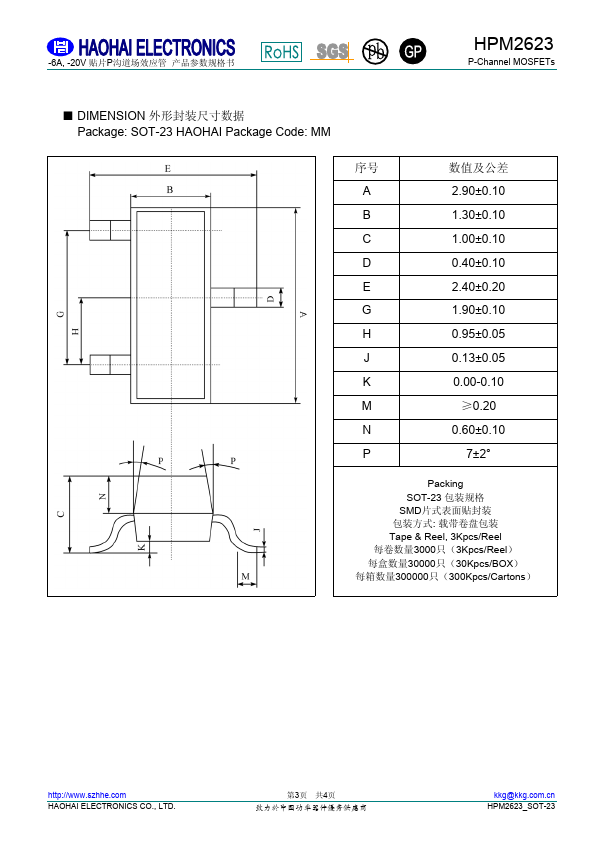

datasheet Preview Page 3

Datasheet Details

Part number	GM2623
Manufacturer	HAOHAI
File Size	270.57 KB
Description	P-Channel Enhancement-Mode MOSFETs SMD
Datasheet	GM2623-HAOHAI.pdf

GM2623 Product details

Features

　.
-20V, -6A, RDS(ON)=33mΩ @ VGS=-4.5V 　.
High dense cell design for extremely low RDS(ON) 　.
Rugged and reliable 　.
Lead free product is acquired 　.
SOT-23 Package 　.
Marking Code: 2623 　　Case Material: Molded Plastic. 　　UL Flammability Classification Rating 94V-0 Internal Block Diagram D HPM2623（SOT-23） D HPM2623 P-Channel MOSFETs HPM2623 P-Channel Enhancement Mode MOS FETs 2623 Si2623 AP2623 GM2623 CMN2623 （） G S S SOT-23 G SOT-23 DEVICE.
