GM2305 - P-Channel MOSFET

HAOHAI

📥 Download Datasheet

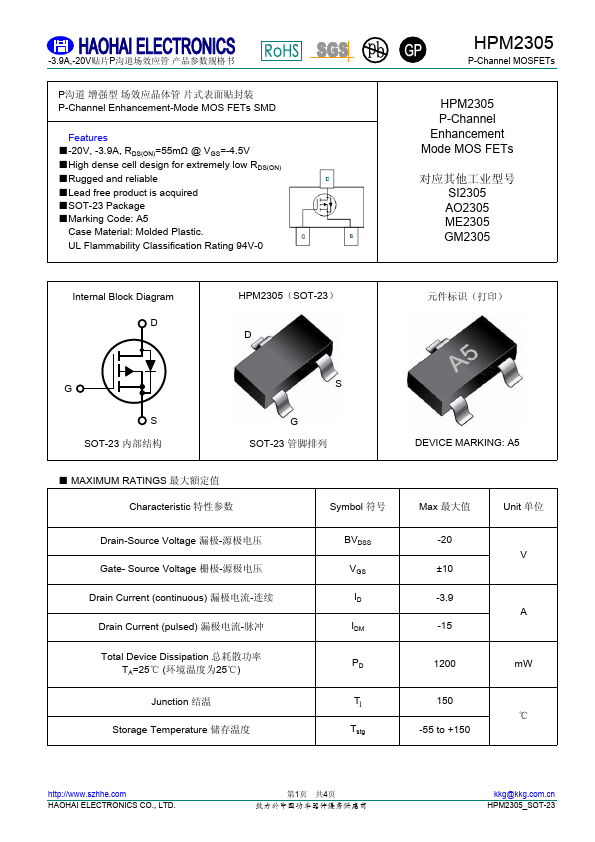

GM2305 Datasheet Preview — Preview of GM2305 PDF

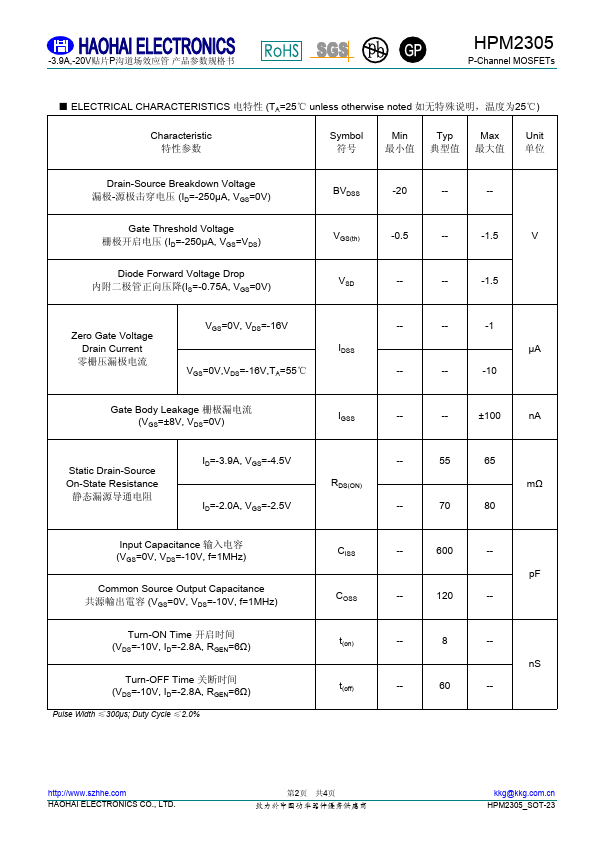

datasheet Preview Page 2

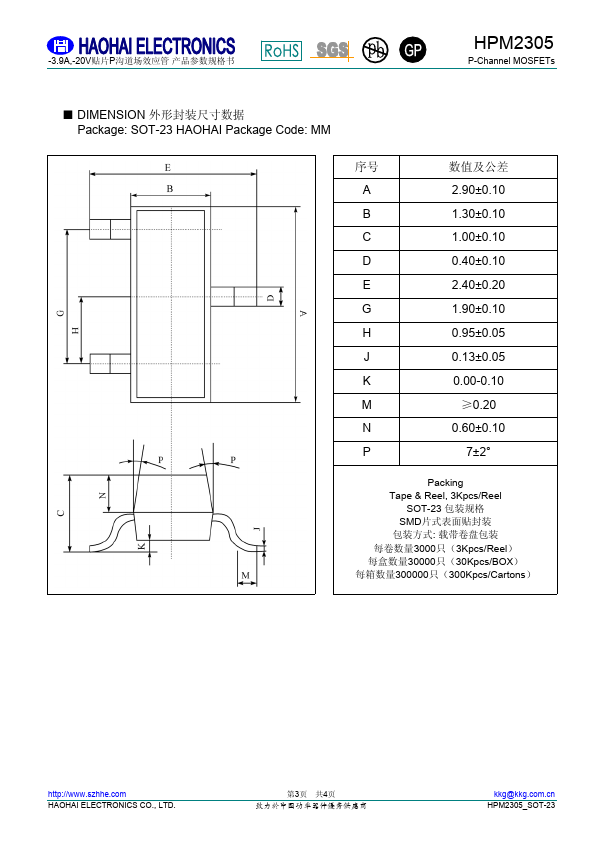

datasheet Preview Page 3

Datasheet Details

Part number	GM2305
Manufacturer	HAOHAI
File Size	269.75 KB
Description	P-Channel MOSFET
Datasheet	GM2305-HAOHAI.pdf

GM2305 Product details

Features

　.
-20V, -3.9A, RDS(ON)=55mΩ @ VGS=-4.5V 　.
High dense cell design for extremely low RDS(ON) 　.
Rugged and reliable 　.
Lead free product is acquired 　.
SOT-23 Package 　.
Marking Code: A5 　　Case Material: Molded Plastic. 　　UL Flammability Classification Rating 94V-0 HPM2305 P-Channel MOSFETs HPM2305 P-Channel Enhancement Mode MOS FETs SI2305 AO2305 ME2305 GM2305 Internal Block Diagram D HPM2305（SOT-23） D （） G S SOT-23 S G SOT-23 　.
