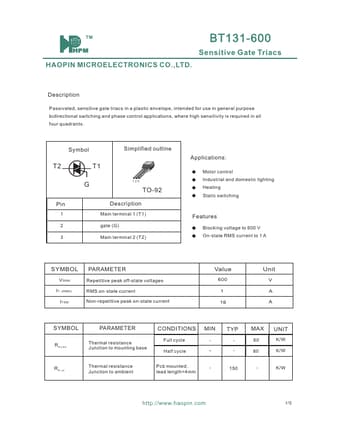

BT131-600 Datasheet - HAOPIN

BT131-600 Sensitive Gate Triacs

Passivated, sensitive gate triacs in a plastic envelope, intended for use in general purpose bidirectional switching and phase control applications, where high sensitivity is required in all four quadrants. Symbol Simplified outline T2 T1 G 123 TO-92 Pin Description 1 Main terminal 1 (T1).

BT131-600 Features

* Blocking voltage to 600 V On-state RMS current to 1 A SYMBOL VDRM IT RMS ITSM PARAMETER Repetitive peak off-state voltages RMS on-state current Non-repetitive peak on-state current Value 600 1 16 Unit V A A SYMBOL PARAMETER Rth j-mb Thermal resistance Junction to mounting base CONDITIONS Fu

BT131-600-HAOPIN.pdf
