BT131-600E, BT131-600E-1, 4Q Triac

TO-92 BT131-600E 4Q Triac 6 May 2015 Product data sheet 1.General .
Planar passivated sensitive gate four quadrant triac in a SOT54 plastic package.

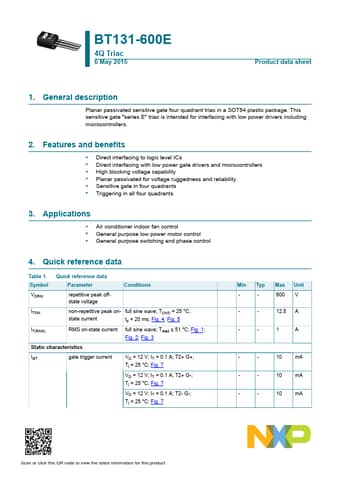

datasheet Preview Page 1 from Datasheet4u.com

BT131-600E-1-NXP.pdf

BT131-600E Datasheet Preview — This datasheet PDF includes multiple part numbers: BT131-600E, BT131-600E-1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BT131-600E, BT131-600E-1

Manufacturer:

NXP ↗

File Size:

178.80 KB

Description:

4Q Triac

Note:

This datasheet PDF includes multiple part numbers: BT131-600E, BT131-600E-1.
Please refer to the document for exact specifications by model.

Features

* Direct interfacing to logic level ICs
* Direct interfacing with low power gate drivers and microcontrollers
* High blocking voltage capability
* Planar passivated for voltage ruggedness and reliability
* Sensitive gate in four quadrants
* Triggering

Applications

* Air conditioner indoor fan control
* General purpose low power motor control
* General purpose switching and phase control 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions VDRM repetitive peak offstate voltage ITSM non-repetitive pea
