BT136S-600D

Sensitive Gate Triacs

HAOPIN

BT136S-600D Features

* Blocking voltage to 600 V On-state RMS current to 4 A Value 600 4 25 Unit V A A SYMBOL Rth j-mb PARAMETER Thermal resistance junction to mounting base CONDITIONS full cycle half cycle MIN - TYP - MAX 3.0 3.7 UNIT K/W K/W Rth j-a Thermal resistance Junction to ambient Pcb(FR4)mounte

BT136S-600D General Description

Passivated, sensitive gate triacs in a plastic envelope, intended for use in general purpose bidirectional switching and phase control applications, where high sensitivity is required in all four quadrants. Symbol T2 T1 Simplified outline 123 Pin 1 2 3 TAB G TO-252 Description Main terminal 1.

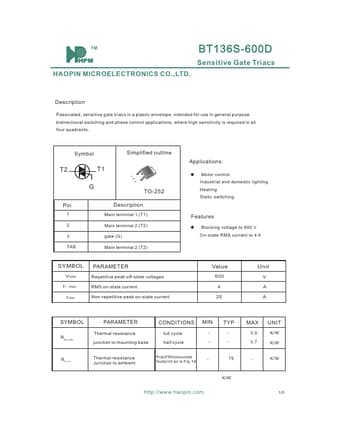

BT136S-600D Datasheet (291.75 KB)

BT136S-600D Datasheet Preview — Preview of BT136S-600D PDF

Datasheet Details

Part number:

BT136S-600D

Manufacturer:

HAOPIN

File Size:

291.75 KB

Description:

Sensitive gate triacs.
