HP20C60 Features

* Blocking voltage to 600 V On-state RMS current to 20 A SYMBOL PARAMETER VDRM Repetitive peak off-state voltages IT RMS RMS on-state current full sine wave ITSM Surge on-state current Value 600 20 220 Unit V A A SYMBOL Rth(j-c) Rth(j-a) PARAMETER Thermal resistance Junction to Case Thermal

HP20C60 General Description

Standard gate triggering SCR is fully isolated package suitable for the application where requiring high bidirectional blocking voltage capability and also suitable for over voltage protection ,motor control circuit in power tool, inrush current limit circuit and heating control system. Symbol Sim.

HP20C60 Datasheet (311.73 KB)

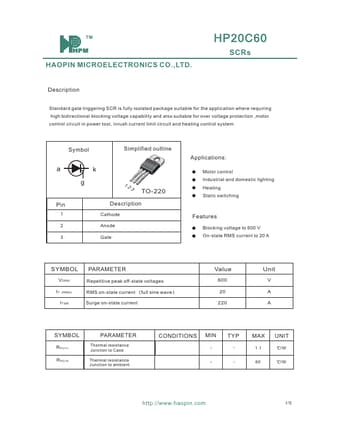

HP20C60 Datasheet Preview — Preview of HP20C60 PDF

Datasheet Details

Part number:

HP20C60

Manufacturer:

HAOPIN

File Size:

311.73 KB

Description:

Scrs.
