HP206C

I2C PRECISION BAROMETER AND ALTIMETER

HP206C Features

* 1.8V to 3.6V Supply Voltage Full Data Compensation Command-based Reading, Compensated (Optional)

* Pressure: 20-bit Measurement (Pascals) Altitude: 20-bit Measurement (Meters) Temperature: 20-bit Measurement (°Celsius) Configurable ADC Decimation Rate via Com

HP206C General Description

The HP206C employs a MEMS pressure sensor with an I2C interface to provide accurate Temperature, Pressure or Altitude data. The sensor Pressure and Temperature outputs are digitized by a high resolution 24-bit ADC. The Altitude value is calculated by a specific patented algorithm according to the p.

HP206C Datasheet (360.82 KB)

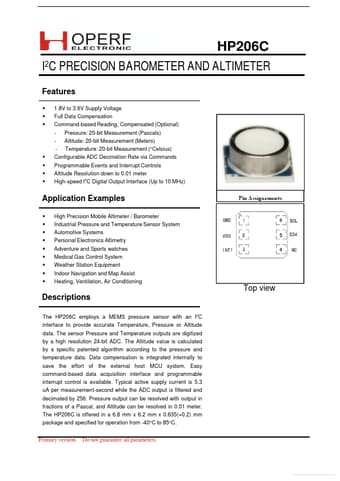

Preview of HP206C PDF

Datasheet Details

Part number:

HP206C

Manufacturer:

HOPERF

File Size:

360.82 KB

Description:

I2c precision barometer and altimeter.
