MAC4DCN Three quadrant triacs

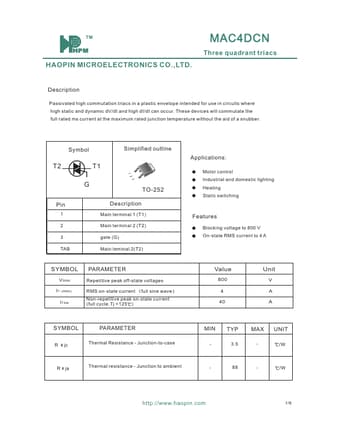

Passivated high commutation triacs in a plastic envelope intended for use in circuits where high static and dynamic dV/dt and high dI/dt can occur. These devices will commutate the full rated ms current at the maximum rated junction temperature without the aid of a snubber. Symbol T2 T1 Simplifi.

MAC4DCN Features

* Blocking voltage to 800 V On-state RMS current to 4 A Value 800 4 40 Unit V A A SYMBOL PARAMETER R jc Thermal Resistance - Junction-to-case R ja Thermal resistance - Junction to ambient MIN TYP - 3.5 MAX UNIT - /W - 88 - /W http://www.haopin.com 1/6 TM HPM HAOPIN MICROELECTRONIC
