HT3286 Datasheet, Amplifier, HEROIC

HT3286 Features

  • Amplifier Output Power (BTL) 2×20W (VDD=14.5V, RL=4Ω, THD+N=1%) 2×33W (VDD=22V, RL=8Ω, THD+N=10%) Output Power (PBTL) 50W (VDD=22V, RL=4Ω, THD+N=1%) Single Wide Voltage Supply: 4.5V-22V Selectab

PDF File Details

Part number:

HT3286

Manufacturer:

HEROIC

File Size:

0.96MB

Download:

📄 Datasheet

Description:

2??30w inductor free class d stereo amplifier. HT3286 is a stereo efficient, Class-D audio amplifier for driving speakers up to 50W/4 Ω in mono PBTL. It can also deliver 2×33W/8Ω p

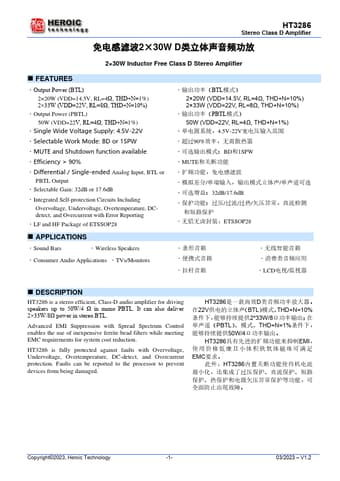

Datasheet Preview: HT3286 📥 Download PDF (0.96MB)
Page 2 of HT3286 Page 3 of HT3286

HT3286 Application

  • Applications Sound Bars Wireless Speakers Consumer Audio Applications TVs/Monitors (BTL) 2×20W (VDD=14.5V, RL=4Ω, THD+N=10%) 2×33W (VDD=22V, RL=
