HT3382 2 x 75W Class D Stereo Amplifier

HT3382 Description

2×75W D HT3382 Stereo Class D Amplifier 2×75W Class D Stereo Amplifier * .
HT3382 is a stereo efficient, Class-D audio amplifier for driving speakers up to 75W/4 Ω in stereo BTL, with a small heat-sink attached to its top sid.

HT3382 Features

* Output Power (BTL) 2×60W (VDD=24V, RL=4Ω, THD+N=1%) 2×75W (VDD=24V, RL=4Ω, THD+N=10%) Output Power (PBTL) 115W (VDD=24V, RL=2Ω, THD+N=1%) 140W (VDD=24V, RL=2Ω, THD+N=10%) Single Wide Voltage Supply: 4.5V-26V Efficiency > 93% Spread spectrum function MUTE function Differential / Single-ended Analog

HT3382 Applications

* Sound Bars Wireless Speakers Consumer Audio Applications TVs/Monitors （BTL） 2×60W (VDD=24V, RL=4Ω, THD+N=1%) 2×75W (VDD=24V, RL=4Ω, THD+N=10%) （PBTL） 115W (VDD=24V, RL=2Ω, THD+N=1%) 140W (VDD=24V, RL=2Ω, THD+N=10%) ，4.5V-26V 93%， MUTE /， ：32dB/26dB ：///， ，ETSSOP28， LCD/
* DESCRIPTI

📥 Download Datasheet

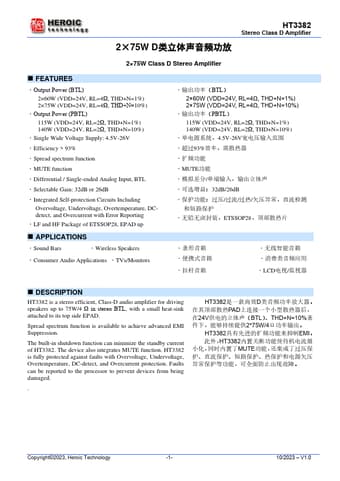

Preview of HT3382 PDF
