HT338 Datasheet - HEROIC

2 x 50W Class D Stereo Amplifier

HT338 Features

* Output Power (BTL) 2×40W (VDD=18V, RL=4Ω, THD+N=10%) 2×50W (VDD=24V, RL=6Ω, THD+N=10%) 2×40W (VDD=24V, RL=8Ω, THD+N=10%) Output Power (PBTL) 80W (VDD=24V, RL=4Ω, THD+N=10%) 100W (VDD=24V, RL=3Ω, THD+N=10%) Single Wide Voltage Supply: 4.5V-26V Efficiency > 90% Spread spectrum function MUTE function

HT338 General Description

HT338 is a stereo efficient, Class-D audio amplifier for driving speakers up to 50W/6 Ω in stereo BTL. It can also deliver 100W/3Ω power in stereo PBTL. Spread spectrum function is available to achieve advanced EMI Suppression. The built-in shutdown function can minimize the standby current of HT338.

HT338 Datasheet (1.37 MB)

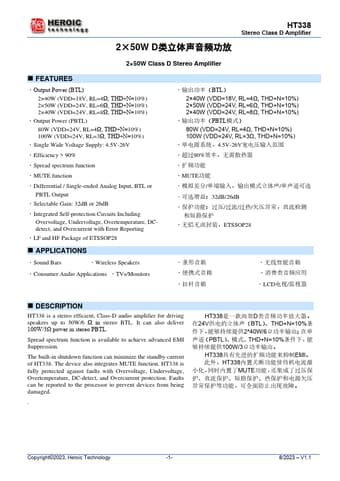

HT338 Datasheet Preview — Preview of HT338 PDF

Datasheet Details

Part number:

HT338

Manufacturer:

HEROIC

File Size:

1.37 MB

Description:

2 x 50w class d stereo amplifier.
