HTD9300 Datasheet - HEROIC

1A Three-Phase Sensor-Less Sine-wave Motor Driver

HTD9300 Features

* Power Supply: 2V~6V Output Current: 1A peak; 0.4A average Three-Phase, Sensor-Less, PWM Sine-Wave Driver Adjustable Startup Commutation Time External PWM or VSP Speed Control Quick Start Function FG, 1/2FG or RD Output Power Saving Function Lock Protection, Auto Restart Function, Over Temperature S

HTD9300 General Description

The HTD9300 is a sensor-less, PWM sine-wave driver for three-phase brushless DC motor. A sine-wave method usually delivers a more silent driving. The device include start-up circuit, back-EMF commutation control, PWM speed control, voltage speed control, lock protection, and over temperature shutdow.

HTD9300 Datasheet (2.19 MB)

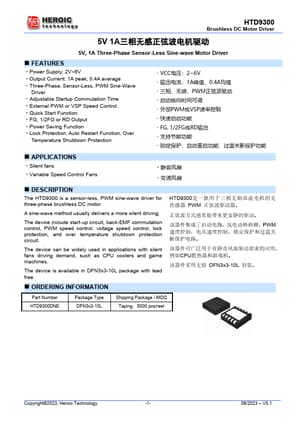

HTD9300 Datasheet Preview — Preview of HTD9300 PDF

Datasheet Details

Part number:

HTD9300

Manufacturer:

HEROIC

File Size:

2.19 MB

Description:

1a three-phase sensor-less sine-wave motor driver.
