HM5NC65AF, HM5NC65AP - 650V N-Channel COOL MOSFET

📥 Download Datasheet

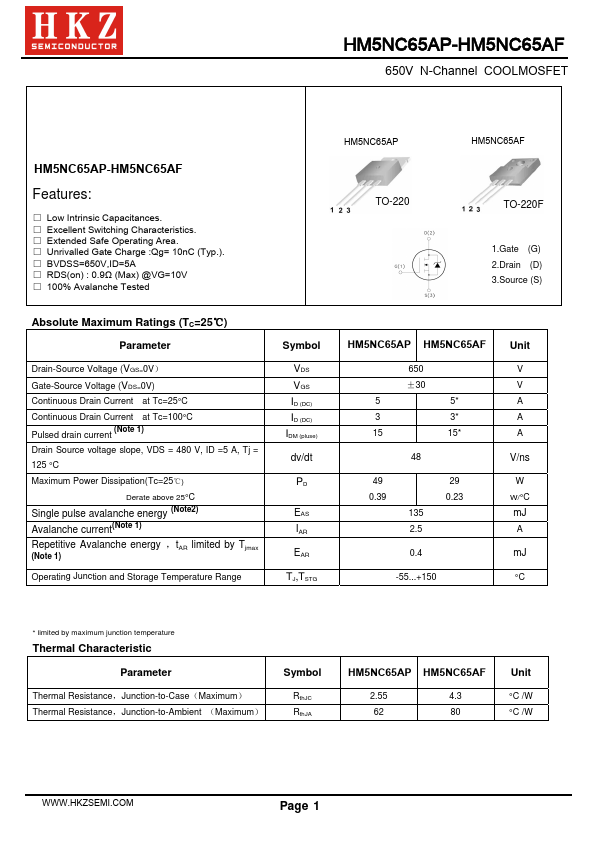

HM5NC65AF Datasheet Preview — This datasheet PDF includes multiple part numbers: HM5NC65AF, HM5NC65AP. Please refer to the document for exact specifications by model.

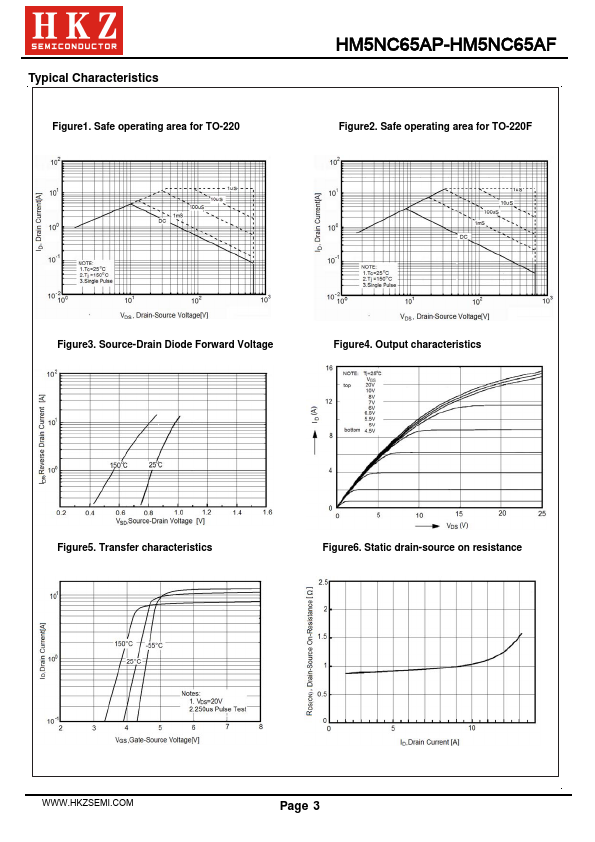

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	HM5NC65AF, HM5NC65AP
Manufacturer	HKZ
File Size	2.23 MB
Description	650V N-Channel COOL MOSFET
Datasheet	HM5NC65AP-HKZ.pdf
Note	This datasheet PDF includes multiple part numbers: HM5NC65AF, HM5NC65AP. Please refer to the document for exact specifications by model.

HM5NC65AF Product details

Features

Low Intrinsic Capacitances.
Excellent Switching Characteristics.
Extended Safe Operating Area.
Unrivalled Gate Charge :Qg= 10nC (Typ. ).
BVDSS=650V,ID=5A.
RDS(on) : 0.9Ω (Max) @VG=10V.
100% Avalanche Tested HM5NC65AP TO-220 HM5NC65AF TO-220F 1.Gate (G) 2.Drain (D) 3.Source (S) Absolute Maximum Ratings (TC=25℃) Parameter Drain-Source Voltage (VGS=0V） Gate-Source Voltage (VDS=0V) Continuous Drain Current at Tc=25°C Continuous D.
