HI-8422

16-Channel Discrete-to-Digital Interface

HI-8422 Features

* ! 8 independent 28 Volt / Open sensing channels ! 8 independent Open / Ground sensing channels ! 5.0 V single supply operation ! Low power CMOS technology ! Industrial and Extended temperature ranges PIN CONFIGURATION 32 - 0VIN2 31 - 28VIN2 30 - 0VIN1

HI-8422 General Description

The HI-8422 is a sixteen channel discrete-to-digital interface device. The device has eight channels designed to sense 28 V / Open signals and eight channels that sense Open / Ground signals. Data is multiplexed from each bank of sensors to an eight bit digital databus. Mixed-signal CMOS technology .

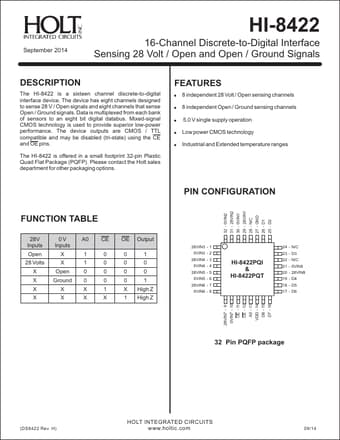

HI-8422 Datasheet (57.34 KB)

Preview of HI-8422 PDF

Datasheet Details

Part number:

HI-8422

Manufacturer:

HOLTIC

File Size:

57.34 KB

Description:

16-channel discrete-to-digital interface.
