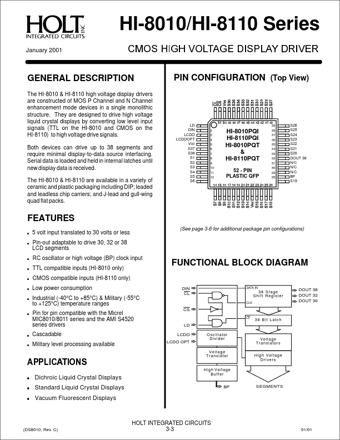

HI-8010 CMOS HIGH VOLTAGE DISPLAY DRIVER

The HI-8010 & HI-8110 high voltage display drivers are constructed of MOS P Channel and N Channel enhancement mode devices in a single monolithic structure. They are designed to drive high voltage liquid crystal displays by converting low level input signals (TTL on the HI-8010 and CMOS on the HI-81.

HI-8010 Features

* ! 5 volt input translated to 30 volts or less ! Pin-out adaptable to drive 30, 32 or 38 LCD segments ! RC oscillator or high voltage (BP) clock input ! TTL compatible inputs (HI-8010 only) ! CMOS compatible inputs (HI-8110 only) ! Low power consumption ! Industrial (-40°C to +85°C) & Military (-55°C

HI8-110.pdf

This datasheet PDF includes multiple part numbers: HI-8010, HI8. Please refer to the document for exact specifications by model.
HI-8010 Datasheet Preview Page 2 HI-8010 Datasheet Preview Page 3

Datasheet Details

Part number:

HI-8010, HI8

Manufacturer:

Holt Integrated Circuits

File Size:

380.56 KB

Description:

Cmos high voltage display driver.

Note:

This datasheet PDF includes multiple part numbers: HI-8010, HI8.
Please refer to the document for exact specifications by model.
