HI-8106 Datasheet, Clk, Holt Integrated Circuits

📥 Download PDF (111.63 KB)

PDF File Details

Holt Integrated Circuits manufacturer logo

Part number:

HI-8106

Manufacturer:

Holt Integrated Circuits

File Size:

111.63 KB

Download:

📄 Datasheet

Description:

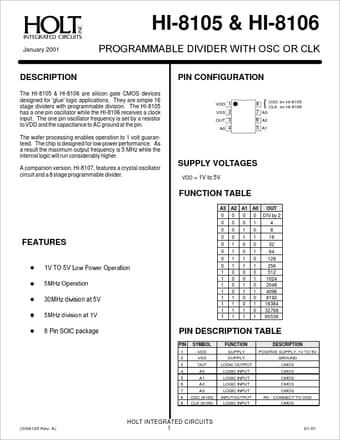

Programmable divider with osc or clk. The HI-8105 & HI-8106 are silicon gate CMOS devices designed for 'glue' logic applications. They are simple 16 stage dividers with pr

✔ HI-8106 Features

a crystal oscillator circuit and a 8 stage programmable divider. PIN CONFIGURATION VDD 1 VSS 2 OUT 3 A0 4 8 on HI-8105 { OSC CLK on HI-8106 7 A3 6 A2 5 A1 SUPPLY VOL

✔ HI-8106 Application

They are simple 16 stage dividers with programmable division. The HI-8105 has a one pin oscillator while th
