HI-8050 - CMOS High Voltage Display Driver

Datasheet Summary

Description

The HI-8050, HI-8051, HI-8150 and HI-8151 are CMOS integrated circuits designed for high voltage LCD display drive applications.

The HI-8050 & HI-8051 have TTL logic inputs whereas the HI-8150 & HI-8151 have CMOS logic inputs.

They drive up to 38 segments at voltages between +5 and -30 volts.

📥 Download Datasheet

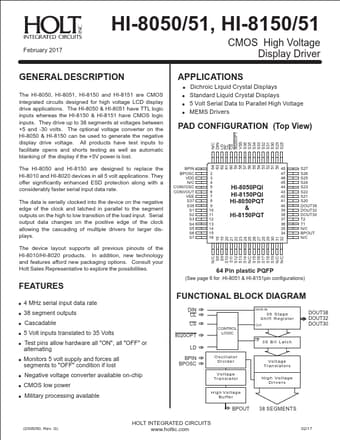

Datasheet preview – HI-8050

Datasheet Details

Part number HI-8050
Manufacturer HOLTIC
File Size 122.52 KB
Description CMOS High Voltage Display Driver
Datasheet download datasheet HI-8050 Datasheet
Additional preview pages of the HI-8050 datasheet.
