HI-8110 - CMOS HIGH VOLTAGE DISPLAY DRIVER

This page provides the datasheet information for the HI-8110, a member of the HI8 CMOS HIGH VOLTAGE DISPLAY DRIVER family.

Datasheet Summary

Description

The HI-8010 & HI-8110 high voltage display drivers are constructed of MOS P Channel and N Channel enhancement mode devices in a single monolithic structure.

Features

  • ! 5 volt input translated to 30 volts or less ! Pin-out adaptable to drive 30, 32 or 38 LCD segments ! RC oscillator or high voltage (BP) clock input ! TTL compatible inputs (HI-8010 only) ! CMOS compatible inputs (HI-8110 only) ! Low power consumption ! Industrial (-40°C to +85°C) & Military (-55°C to +125°C) temperature ranges ! Pin for pin compatible with the Micrel MIC8010/8011 series and the AMI S4520 series drivers ! Cascadable ! Military level processing available DIN Þ CL Þ CS Þ LE DATA.

📥 Download Datasheet

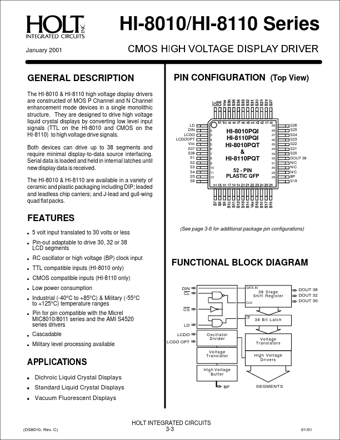

Datasheet preview – HI-8110

Datasheet Details

Part number HI-8110
Manufacturer Holt Integrated Circuits
File Size 380.56 KB
Description CMOS HIGH VOLTAGE DISPLAY DRIVER
Datasheet download datasheet HI-8110 Datasheet
Additional preview pages of the HI-8110 datasheet.

📁 Similar Datasheet

  • HI-8150 - CMOS High Voltage Display Driver (HOLTIC)
  • HI-8151 - CMOS High Voltage Display Driver (HOLTIC)
  • HI-8045 - CMOS HIGH VOLTAGE DISPLAY DRIVER (Holt Integrated)
  • HI-8050 - CMOS High Voltage Display Driver (HOLTIC)
  • HI-8051 - CMOS High Voltage Display Driver (HOLTIC)
  • HI-8382 - (HI-8382 / HI-8383) ARINC 429 DIFFERENTIAL LINE DRIVER (Holt Integrated)
  • HI-8383 - (HI-8382 / HI-8383) ARINC 429 DIFFERENTIAL LINE DRIVER (Holt Integrated)
  • HI-8420 - 6-Channel / 8-Channel Discrete-to-Digital Interface (HOLTIC)
  • HI-8421 - six channel discrete-to-digital interface (HOLTIC)
  • HI-8422 - 16-Channel Discrete-to-Digital Interface (HOLTIC)
Other Datasheets by Holt Integrated Circuits
  • HI-8105 - PROGRAMMABLE DIVIDER WITH OSC OR CLK
  • HI-8106 - PROGRAMMABLE DIVIDER WITH OSC OR CLK
  • HI-8120 - CMOS HIGH VOLTAGE DISPLAY DRIVER
  • HI-8010 - CMOS HIGH VOLTAGE DISPLAY DRIVER
  • HI-8020 - CMOS HIGH VOLTAGE DISPLAY DRIVER
  • HI-8040 - CMOS HIGH VOLTAGE DISPLAY DRIVER
  • HI-8200 - Quad 10-Ohm +/-12V outside-the-rails Analog Switch
  • HI-8201 - Quad 10-Ohm +/-12V outside-the-rails Analog Switch

Full PDF Text Transcription

Click to expand full text
HI-8010/HI-8110 Series January 2001 GENERAL DESCRIPTION The HI-8010 & HI-8110 high voltage display drivers are constructed of MOS P Channel and N Channel enhancement mode devices in a single monolithic structure. They are designed to drive high voltage liquid crystal displays by converting low level input signals (TTL on the HI-8010 and CMOS on the HI-8110) to high voltage drive signals. Both devices can drive up to 38 segments and require minimal display-to-data source interfacing. Serial data is loaded and held in internal latches until new display data is received. The HI-8010 & HI-8110 are available in a variety of ceramic and plastic packaging including DIP; leaded and leadless chip carriers; and J-lead and gull-wing quad flat packs.
