HY5012A, HY5012W Datasheet - HOOYI

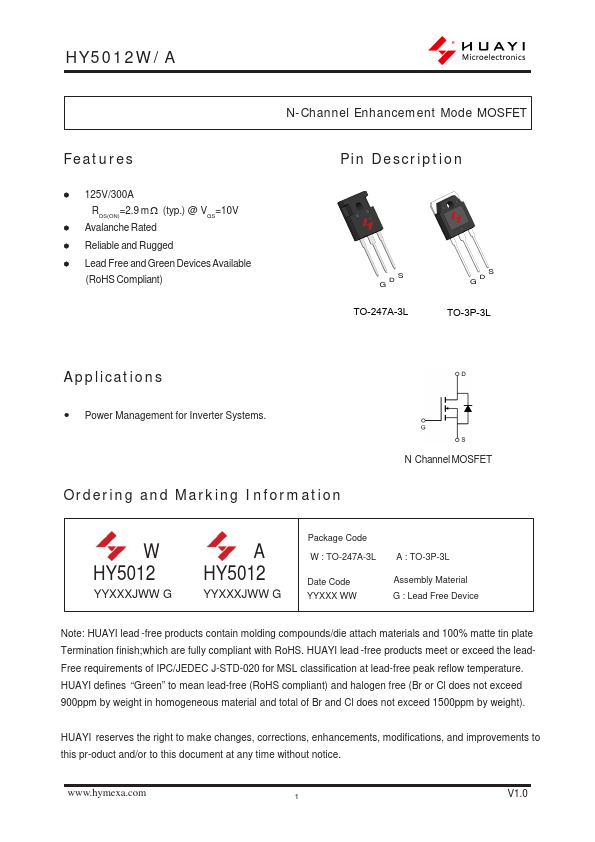

HY5012A N-Channel Enhancement Mode MOSFET

HY5012W/A Absolute Maximum Ratings Symbol Parameter Rating Common Ratings (TC=25°C Unless Otherwise Noted) VDSS Drain-Source Voltage VGSS Gate-Source Voltage TJ Maximum Junction Temperature TSTG Storage Temperature Range IS Diode Continuous Forward Current Mounted on Large Heat Sink TC=25°C 125 ±25 175 55 to 175 300 IDM Pulsed Drain Current ID Continuous Drain Current PD Maximum Power Dissipation RθJC Thermal Resistance-Junction to Case RθJA Thermal Resistance-Junction to Ambient .

HY5012W-HOOYI.pdf

This datasheet PDF includes multiple part numbers: HY5012A, HY5012W. Please refer to the document for exact specifications by model.

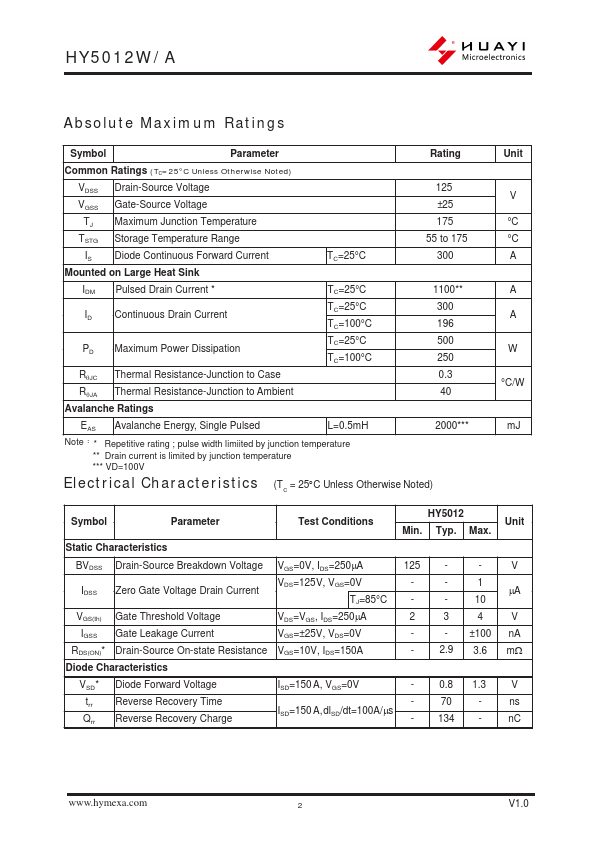

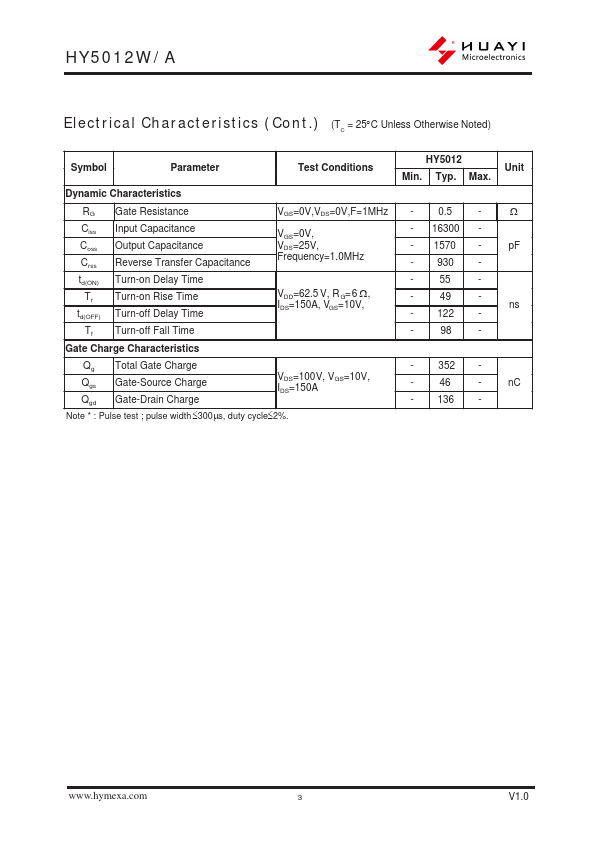

HY5012A Datasheet Preview Page 2 HY5012A Datasheet Preview Page 3

Datasheet Details

Part number:

HY5012A, HY5012W

Manufacturer:

HOOYI

File Size:

488.50 KB

Description:

N-channel enhancement mode mosfet.

Note:

This datasheet PDF includes multiple part numbers: HY5012A, HY5012W.
Please refer to the document for exact specifications by model.
