HP02S

BAROMETER MODULE

HP02S Features

* . 14 Bit ENOB ADC resolution . Supply voltage 2.0v-5.0v . 0° C to + 50° C operating range Applications . Pressure measurement and control systems . Mobile altimeter/barometer systems . Weather forecast products . Adventure or multi-mode watches Block Diagram 1 Free Datasheet http://www.datasheet4u.

HP02S General Description

The HP02S includes a piezo-resistive pressure sensor and an ADC interface. It provides 16 bit word data for pressure and temperature related voltage. With the help of a highly accurate calibration of the senor, 5 unique coefficients were stored on the chip, thus accurate pressure and temperature rea.

HP02S Datasheet (196.00 KB)

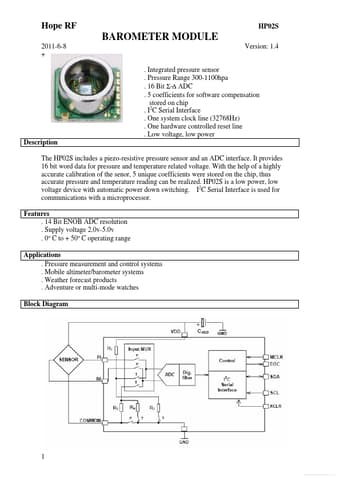

Preview of HP02S PDF

Datasheet Details

Part number:

HP02S

Manufacturer:

HOPERF

File Size:

196.00 KB

Description:

Barometer module.
Hope RF HP02S BAROMETER MODULE 2011-6-8 + Version: 1.4 . Integrated pressure sensor . Pressure Range 300-1100hpa . 16 Bit Σ

* Δ ADC . 5 coeff.
