HP03S

sensor module

HP03S Features

* . 14 Bit ADC resolution . Supply voltage 2.2v-3.6v . -40°C to + 85°C operating range . No external components required Applications . Pressure measurement and control systems . Mobile altimeter/barometer systems . Weather forecast products . Adventure or multi-mode watches . GPS receivers Block Diag

HP03S General Description

The HP03S pressure module includes a piezo-resistive pressure sensor and an ADC interface. It provides 16 bit word data for pressure and temperature related voltage. With the help of a highly accurate calibration of the senor, 11 unique coefficients were stored on the chip, thus accurate pressure an.

HP03S Datasheet (268.97 KB)

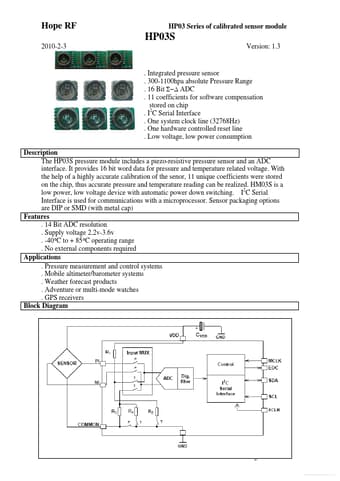

Preview of HP03S PDF

Datasheet Details

Part number:

HP03S

Manufacturer:

HOPERF

File Size:

268.97 KB

Description:

Sensor module.
Hope RF 2010-2-3 HP03 Series of calibrated sensor module HP03S Version: 1.3 . Integrated pressure sensor . 300-1100hpa absolute Pressure Range . 16.
