HP03M Datasheet - HOPERF

sensor module

HP03M Features

* . 14 Bit ADC resolution . Supply voltage 2.2v-3.6v . -40°C to +85°C operating range . No external components required Applications . Pressure measurement and control systems . Mobile altimeter/barometer systems . Weather forecast products . Adventure or multi-mode watches . GPS receivers Block Diagr

HP03M General Description

The HP03M pressure module includes a piezo-resistive pressure sensor and an ADC interface. It provides 16 bit word data for pressure and temperature related voltage. With the help of a highly accurate calibration of the senor, 11 unique coefficients were stored on the chip, thus accurate pressure an.

HP03M Datasheet (253.79 KB)

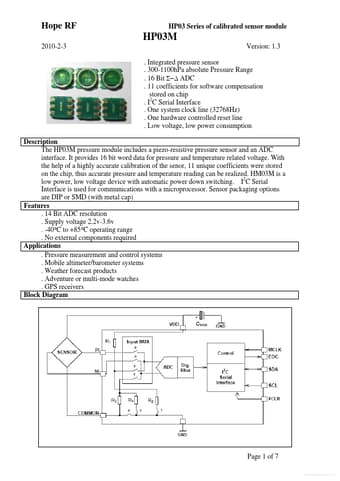

HP03M Datasheet Preview — Preview of HP03M PDF

Datasheet Details

Part number:

HP03M

Manufacturer:

HOPERF

File Size:

253.79 KB

Description:

Sensor module.
Hope RF 2010-2-3 HP03 Series of calibrated sensor module HP03M Version: 1.3 . Integrated pressure sensor . 300-1100hPa absolute Pressure Range . 16 .
