CMS1620, CMS1600 Datasheet - HOSIDEN

CMS1620 - USB 3.0 Connectors

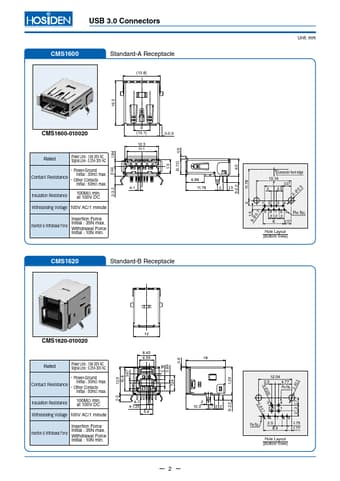

USB 3.0 Connectors CMS1600 Standard-A Receptacle (13.8) Unit: mm 16.5 CMS1600-010020 Rated Power Line : 1.8A 30V AC Signal Line : 0.25A 30V AC Contact Resistance PoInwiteiar-lG: r3o0umndΩ max. Other Contacts Initial : 50mΩ max. Insulation Resistance 100MΩ min. at 100V DC Withstanding Voltage 100V AC/1 minute Insertion Force Insertion & Withdrawal Force Initial : 35N max. Withdrawal Force Initial : 10N min. 2-3.2 (3.64) 1.84 6 (13.1) 12.5 11.1 2-0.9 5.12 (5.72) 0.9 6.8.

CMS1600-HOSIDEN.pdf

CMS1620 Datasheet Preview — This datasheet PDF includes multiple part numbers: CMS1620, CMS1600. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CMS1620, CMS1600

Manufacturer:

HOSIDEN

File Size:

116.22 KB

Description:

Usb 3.0 connectors.

Note:

This datasheet PDF includes multiple part numbers: CMS1620, CMS1600.
Please refer to the document for exact specifications by model.
