CMS10I30A Schottky Barrier Diode

CMS10I30A Description

Schottky Barrier Diode CMS10I30A 1.Applications * Secondary Rectification in Switching Regulators * Reverse-Current Protection in Mob.

CMS10I30A Features

* (1) Peak forward voltage: VFM = 0.36 V (max) @IFM = 1 A (2) Average forward current: IF(AV) = 1 A (3) Repetitive peak reverse voltage: VRRM = 30 V (4) Small, thin package suitable for high-density board assembly Toshiba Nickname: M-FLATTM 3. Packaging and Internal Circuit CMS10I30A 1: Anode 2: Cat

CMS10I30A Applications

* Secondary Rectification in Switching Regulators

📥 Download Datasheet

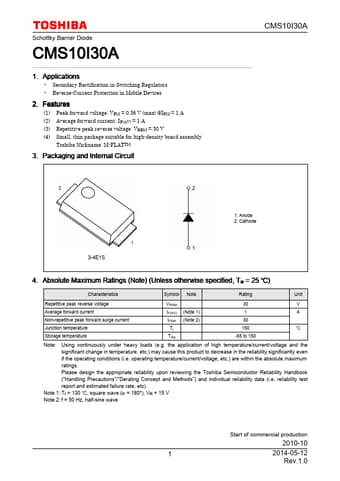

Preview of CMS10I30A PDF
datasheet Preview Page 2 datasheet Preview Page 3
