CMS10I40A

Schottky Barrier Diode

CMS10I40A Features

* (1) Peak forward voltage: VFM = 0.45 V (max) @IFM = 1 A (2) Average forward current: IF(AV) = 1 A (3) Repetitive peak reverse voltage: VRRM = 40 V (4) Small, thin package suitable for high-density board assembly Toshiba Nickname: M-FLATTM 3. Packaging and Internal Circuit CMS10I40A 1: Anode 2: Cat

CMS10I40A Datasheet (267.30 KB)

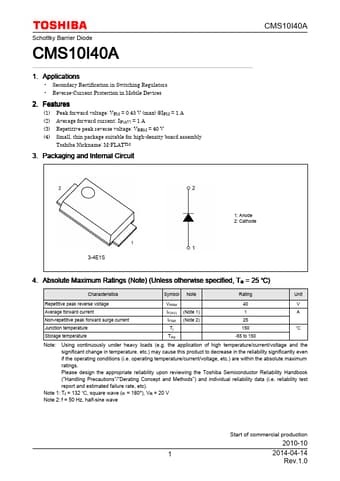

Preview of CMS10I40A PDF

Datasheet Details

Part number:

CMS10I40A

Manufacturer:

Toshiba ↗

File Size:

267.30 KB

Description:

Schottky barrier diode.
Schottky Barrier Diode CMS10I40A 1. Applications

* Secondary Rectification in Switching Regulators

* Reverse-Current Protection in Mob.
