CMS15 Datasheet - Toshiba Semiconductor

CMS15 Switching Mode Power Supply Applications

CMS15 TOSHIBA Schottky Barrier Diode CMS15 Switching Mode Power Supply Applications (Output voltage: ≤12 V) DC/DC Converter Applications Forward voltage: VFM = 0.58 V (max) Average forward current: IF (AV) = 3.0 A Repetitive peak reverse voltage: VRRM = 60 V Suitable for compact assembly due to small surface-mount package “M FLATTM” (Toshiba package name) Unit: mm Absolute Maximum Ratings (Ta = 25°C) Characteristics Repetitive peak reverse voltag.

CMS15_ToshibaSemiconductor.pdf

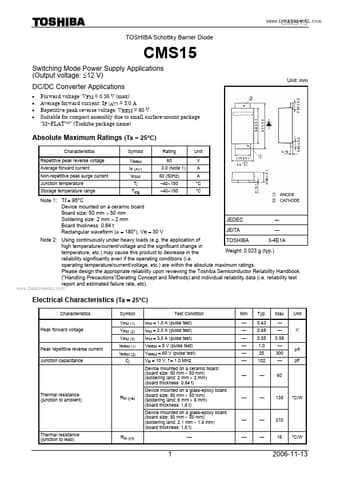

Preview of CMS15 PDF
CMS15 Datasheet Preview Page 2 CMS15 Datasheet Preview Page 3

Datasheet Details

Part number:

CMS15

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

221.96 KB

Description:

Switching mode power supply applications.
