CMS11 Datasheet - Toshiba Semiconductor

CMS11 TOSHIBA Schottky Barrier Rectifier Schottky Barrier Type

www.DataSheet4U.com CMS11 TOSHIBA Schottky Barrier Rectifier Schottky Barrier Type CMS11 Switching Mode Power Supply Applications Portable Equipment Battery Applications Forward voltage: VFM = 0.55 V (max) Average forward current: IF (AV) = 2.0 A Repetitive peak reverse voltage: VRRM = 40 V Suitable for compact assembly due to small surface-mount package “M FLATTM” (Toshiba package name) Unit: mm Maximum Ratings (Ta = 25°C) Characteristics Repetitive peak rever.

CMS11_ToshibaSemiconductor.pdf

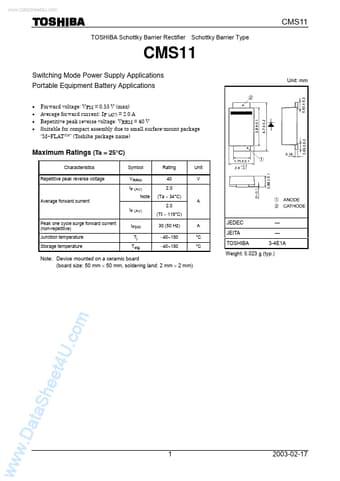

Preview of CMS11 PDF
CMS11 Datasheet Preview Page 2 CMS11 Datasheet Preview Page 3

Datasheet Details

Part number:

CMS11

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

163.01 KB

Description:

Toshiba schottky barrier rectifier schottky barrier type.
