CMS14 Datasheet - Toshiba Semiconductor

CMS14 Schottky Barrier Diode

Schottky Barrier Diode CMS14 ○ Radio-Frequency Rectification in Switching Regulators ○ DC-DC Converters CMS14 Unit: mm Repetitive peak reverse voltage : VRRM = 60 V Average forward current : IF (AV) = 2.0 A Peak forward voltage : VFM = 0.58 V (max) Suitable for high-density board assembly due to the use of a small Toshiba Nickname: M FLATTM Absolute Maximum Ratings (Ta = 25°C) Characteristics Repetitive peak reverse voltage Average forward.

CMS14_ToshibaSemiconductor.pdf

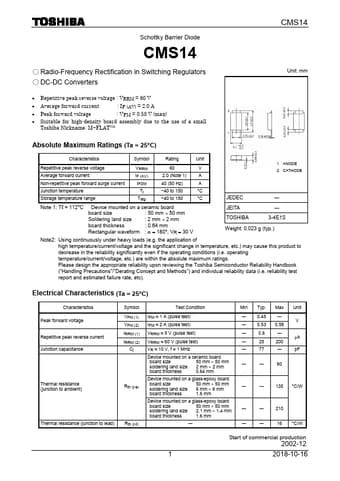

Preview of CMS14 PDF
CMS14 Datasheet Preview Page 2 CMS14 Datasheet Preview Page 3

Datasheet Details

Part number:

CMS14

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

354.80 KB

Description:

Schottky barrier diode.
