DS12W

Surface Mount Schottky Barrier Rectifier

DS12W Features

* Metal silicon junction, majority carrier conduction

* For surface mounted applications

* Low power loss, high efficiency

* High forward surge current capability

* For use in low voltage, high frequency inverters, free wheeling, and polarity protection applic

DS12W General Description

1 Cathode 2 Anode 12 Top View Marking Code: DS12W *-S12 DS14W *-S14 DS16W *-S16 DS18W *-S18 DS110W *-S110 DS112W *-S112 DS115W *-S115 DS120W *-S120 Simplified outline SOD-123FL and symbol Absolute Maximum Ratings and Electrical charact.

DS12W Datasheet (727.80 KB)

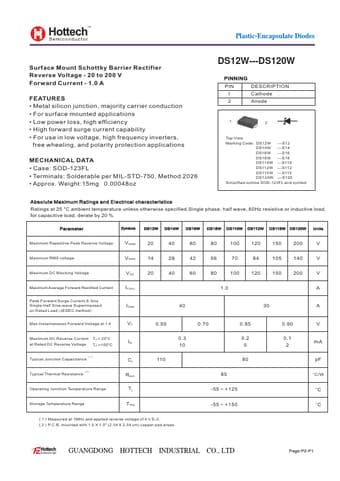

Preview of DS12W PDF

Datasheet Details

Part number:

DS12W

Manufacturer:

HOTTECH

File Size:

727.80 KB

Description:

Surface mount schottky barrier rectifier.
