HLMP-3650 - Integrated Resistor LED Lamps

Product Overview

Part number	HLMP-3650
Manufacturer	HP
File Size	137.13 KB
Description	Integrated Resistor LED Lamps
Datasheet	HLMP-3650 Datasheet
Note	This datasheet PDF includes multiple part numbers: HLMP-3650, HLMP-1600. Please refer to the document for exact specifications by model.

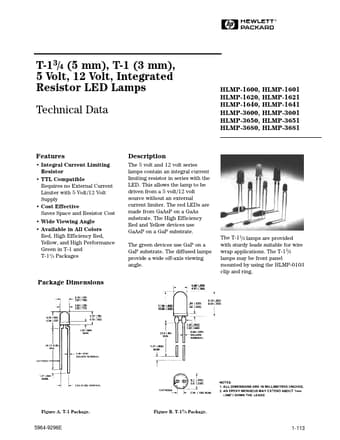

Additional preview pages of the HLMP-3650 datasheet.

The 5 volt and 12 volt series lamps contain an integral current limiting resistor in series with the LED.

Integral Current Limiting Resistor.
TTL Compatible Requires no External Current Limiter with 5 Volt/12 Volt Supply.
Cost Effective Saves Space and Resistor Cost.
Wide Viewing Angle.
Available in All Colors Red, High Efficiency Red, Yellow, and High Performance Green in T-1 and T-13/4 Packages Package Dimensions.
