LM1117Q

1A L.D.O VOLTAGE REGULATOR

LM1117Q Features

* Qualified to AEC-Q100 Standard Output Current Up to 1A Low Dropout Voltage (1.2V at 1A Output current) Three Terminal Adjustable(ADJ) or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, 5.0V Line Regulation typically at 0.1% max. Load Regul

LM1117Q General Description

SOT-223 Pin No. 1 2 3 Name ADJ/GND VOUT VIN Function Adjustable / Ground Output Voltage Input Voltage Jul. 2011 Rev. 1.0 -3- HTC Free Datasheet http://www.datasheet4u.com/ 1A L.D.O VOLTAGE REGULATOR(Automotive Grade) ELECTRICAL CHARACTERISTICS For ADJ Output Voltage Symbol VREF VREF ΔVLINE ΔVLO.

LM1117Q Datasheet (330.85 KB)

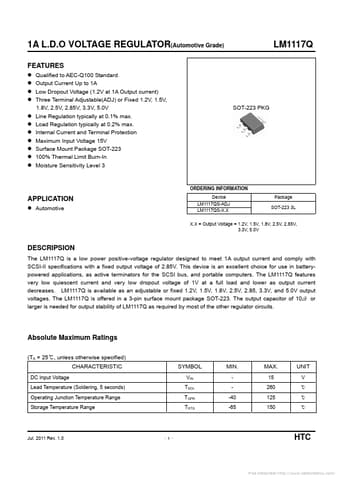

Preview of LM1117Q PDF

Datasheet Details

Part number:

LM1117Q

Manufacturer:

HTC Korea

File Size:

330.85 KB

Description:

1a l.d.o voltage regulator.
