LM27152, LM27150 1.5A Very L.D.O Voltage Regulator

LM27152 Description

1.5A Very L.D.O Voltage Regulator .
1.

LM27152 Features

* High Current Capability 1.5A Low Dropout Voltage 350mV Low Ground Current Accurate 1% Guaranteed Initial Tolerance Extremely Fast Transient Response Reverse-Battery and "Load Dump" Protection Zero-Current Shutdown Mode(5-Pin Version) Error Flag Signals Output out-of-Regulation (5-Pin Version)

LM27152 Applications

* in lower current, low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes. The LM27150, LM27151 and LM27152 are fully protected against over current faults, reversed input polarity, reversed lead insertion, over temperature operation, and pos

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LM27152, LM27150. Please refer to the document for exact specifications by model.

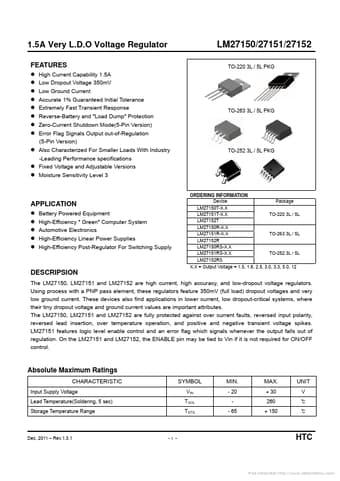

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM27152, LM27150
Manufacturer
HTC Korea
File Size
837.10 KB
Datasheet
LM27150_HTCKorea.pdf
Description
1.5A Very L.D.O Voltage Regulator
Note
This datasheet PDF includes multiple part numbers: LM27152, LM27150.
Please refer to the document for exact specifications by model.
