LM2710

Step-up PWM DC/DC Converter

LM2710 Features

* n 1.4A, 0.17Ω, internal power switch n VIN operating range: 2.2V to 7.5V n 600kHz/1.25MHz selectable frequency step-up DC/DC converter n 20 pin TSSOP package n Inrush current limiting circuitry n External softstart override n Vcom buffer n 4 Gamma buffers Applications n n n n LCD Bias Supplies Hand

LM2710 General Description

The LM2710 is a compact bias solution for TFT displays. It has a current mode PWM step-up DC/DC converter with a 1.4A, 0.17Ω internal switch. Capable of generating 8V at 300mA from a Lithium Ion battery, the LM2710 is ideal for generating bias voltages for large screen LCD panels. The LM2710 can be .

LM2710 Datasheet (853.02 KB)

Preview of LM2710 PDF

Datasheet Details

Part number:

LM2710

Manufacturer:

National Semiconductor

File Size:

853.02 KB

Description:

Step-up pwm dc/dc converter.

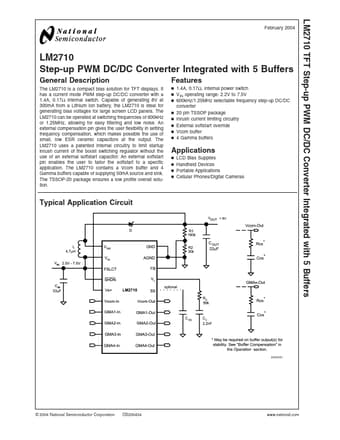

LM2710 TFT Step-up PWM DC/DC Converter Integrated with 5 Buffers February 2004 LM2710 Step-up PWM DC/DC Converter Integrated with 5 Buffers General .
