LM37100

1A Low-Voltage Low-Dropout Regulator

LM37100 Features

* Fixed and adjustable output voltages to 1.24V

* 470mV typical dropout at 1A Ideal for 3.0V to 2.5V conversion Ideal for 2.5V to 1.8V or 1.5V conversion

* 1A minimum guaranteed output current

* 1% initial accuracy

* Low ground current

* Current limiting and thermal shutdown

LM37100 General Description

ORDERING INFORMATION Device Package LM37100S-X.X SOT-233 LM37101D-X.X LM37102D SOP-8 LM37101RS-X.X LM37102RS TO-252 X.X = Output Voltage = 1.5, 1.8, 2.5, 3.3, 5.0 The LM37100/1/2 is 1A low-dropout linear voltage regulators that provide low-voltage, high-current output. The LM37100/1/2 off.

LM37100 Datasheet (693.41 KB)

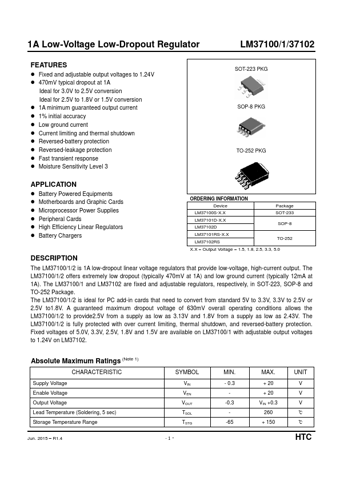

Preview of LM37100 PDF

Datasheet Details

Part number:

LM37100

Manufacturer:

HTC Korea

File Size:

693.41 KB

Description:

1a low-voltage low-dropout regulator.
