LM37101 - 1A Low-Voltage Low-Dropout Regulator

Product Overview

HTC Korea

Datasheet Details

Part number	LM37101
Manufacturer	HTC Korea
File Size	693.41 KB
Description	1A Low-Voltage Low-Dropout Regulator
Datasheet	LM37101 Datasheet

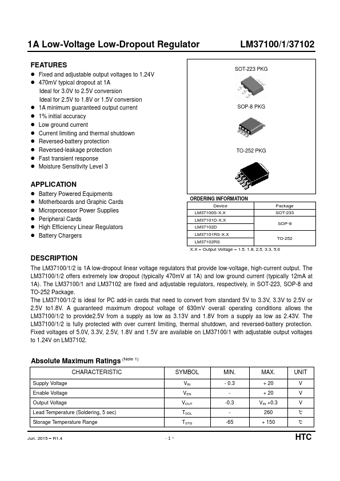

Additional preview pages of the LM37101 datasheet.

Product details

Description

ORDERING INFORMATION Device Package LM37100S-X.X SOT-233 LM37101D-X.X LM37102D SOP-8 LM37101RS-X.X LM37102RS TO-252 X.X = Output Voltage = 1.5, 1.8, 2.5, 3.3, 5.0 The LM37100/1/2 is 1A low-dropout linear voltage regulators that provide low-voltage, high-current output.The LM37100/1/2 offers extremely low dropout (typically 470mV at 1A) and low ground current (typically 12mA at 1A).The LM37100/1 and LM37102 are fixed and adjustable regulators, respectively, in SOT-223, SOP-8 and TO-2

Features

Fixed and adjustable output voltages to 1.24V.
470mV typical dropout at 1A Ideal for 3.0V to 2.5V conversion Ideal for 2.5V to 1.8V or 1.5V conversion.
1A minimum guaranteed output current.
1% initial accuracy.
Low ground current.
Current limiting and thermal shutdown.
Reversed-battery protection.
Reversed-leakage protection.
Fast transient response.
Moisture Sensitivity Level 3 SOT-223 PKG SOP-8 PKG TO-252 PKG.
