LM3712 - Microprocessor Supervisory Circuits

Product Overview

National Semiconductor

Datasheet Details

Part number	LM3712
Manufacturer	National Semiconductor
File Size	214.66 KB
Description	Microprocessor Supervisory Circuits
Datasheet	LM3712 Datasheet

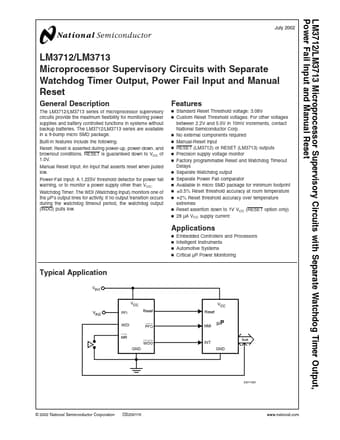

Additional preview pages of the LM3712 datasheet.

Product details

Description

The LM3712/LM3713 series of microprocessor supervisory circuits provide the maximum flexibility for monitoring power supplies and battery controlled functions in systems without backup batteries.

Features

include the following: Reset: Reset is asserted during power-up, power-down, and brownout conditions. RESET is guaranteed down to VCC of 1.0V. Manual Reset Input: An input that asserts reset when pulled low. Power-Fail Input: A 1.225V threshold detector for power fail warning, or to monitor a power supply other than VCC. Watchdog Timer: The WDI (Watchdog Input) monitors one of the µP’s output lines for activity. If no output transitio.
