LM29151, LM29150, 1.5A Very L.D.O Voltage Regulator

1.5A Very L.D.O Voltage Regulator .
ORDERING INFORMATION Device Package LM29150T-X.

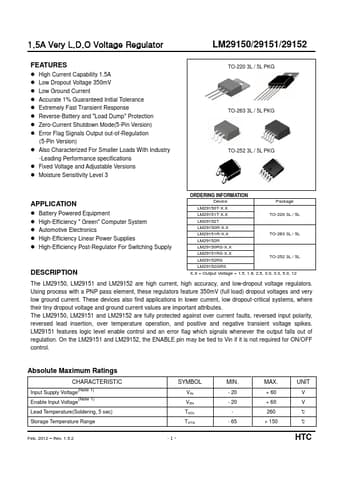

datasheet Preview Page 1 from Datasheet4u.com

LM29150_HTC.pdf

LM29151 Datasheet Preview — This datasheet PDF includes multiple part numbers: LM29151, LM29150. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LM29151, LM29150

Manufacturer:

HTC

File Size:

609.55 KB

Description:

1.5A Very L.D.O Voltage Regulator

Note:

This datasheet PDF includes multiple part numbers: LM29151, LM29150.
Please refer to the document for exact specifications by model.

Features

* High Current Capability 1.5A
* Low Dropout Voltage 350mV
* Low Ground Current
* Accurate 1% Guaranteed Initial Tolerance
* Extremely Fast Transient Response
* Reverse-Battery and "Load Dump" Protection
* Zero-Current Shutdown Mode(5-Pin Version)
* Error Flag Signals

Applications

* in lower current, low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes. The LM29150, LM29151 and LM29152 are fully protected against over current faults, reversed input polarity, reversed lead insertion, over temperature operation, and pos
