LM29152 - 1.5A Very L.D.O Voltage Regulator

Product Overview

HTC

LM29152 1.5A Very L.D.O Voltage Regulator by HTC - Datasheet Preview — Datasheet preview – LM29152

Datasheet Details

Part number	LM29152
Manufacturer	HTC
File Size	609.55 KB
Description	1.5A Very L.D.O Voltage Regulator
Datasheet	LM29152 Datasheet
Note	This datasheet PDF includes multiple part numbers: LM29152, LM29150. Please refer to the document for exact specifications by model.

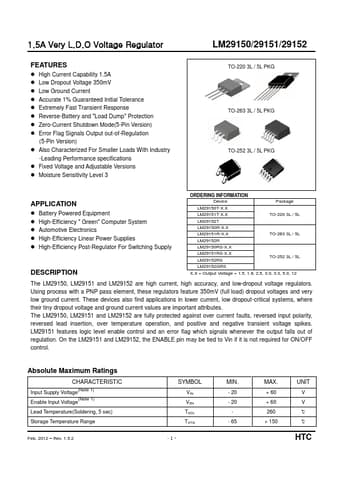

Additional preview pages of the LM29152 datasheet.

Product details

Description

ORDERING INFORMATION Device Package LM29150T-X.X LM29151T-X.X TO-220 3L / 5L LM29152T LM29150R-X.X LM29151R-X.X TO-263 3L / 5L LM29152R LM29150RS-X.X LM29151RS-X.X LM29152RS TO-252 3L / 5L LM29152GRS X.X = Output Voltage = 1.5, 1.8, 2.5, 3.0, 3.3, 5.0, 12 The LM29150, LM29151 and LM29152 are high current, high accuracy, and low-dropout voltage regulators.Using process with a PNP pass element, these regulators feature 350mV (full load) dropout voltages and very low ground curren

Features

High Current Capability 1.5A.
Low Dropout Voltage 350mV.
Low Ground Current.
Accurate 1% Guaranteed Initial Tolerance.
Extremely Fast Transient Response.
Reverse-Battery and "Load Dump" Protection.
Zero-Current Shutdown Mode(5-Pin Version).
Error Flag Signals Output out-of-Regulation (5-Pin Version).
Also Characterized For Smaller Loads With Industry -Leading Performance specifications.
Fixed Voltage and Adjustable Versions.
Moisture Sensit.
