LM2951, LM2950 - 100mA LOW DROPOUT VOLTAGE REGULATORS

LM2951 Description

100mA LOW DROPOUT VOLTAGE REGULATORS LM2950/1 .
The LM2950/1 is a low power voltage regulator.

LM2951 Features

* High accuracy output voltage
* Guaranteed 100 mA output
* Very low quiescent current
* Extremely tight load and line regulation
* Very low temperature coefficient
* Current and thermal limiting
* Low dropout voltage
* Need only 1uF for stability
* Error flag war

LM2951 Applications

* High-efficiency linear regulator, voltage reference
* Battery powered systems
* Portable consumer equipment
* Portable / Parm, Desktop / Notebook computers
* Portable Instrumentation, cordless telephones
* Automotive Electronics, Radio control systems
* SMPS Post-Regula

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LM2951, LM2950. Please refer to the document for exact specifications by model.

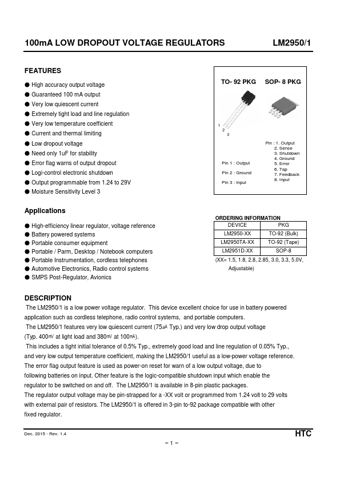

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM2951, LM2950
Manufacturer
HTC
File Size
205.67 KB
Datasheet
LM2950-HTC.pdf
Description
100mA LOW DROPOUT VOLTAGE REGULATORS
Note
This datasheet PDF includes multiple part numbers: LM2951, LM2950.
Please refer to the document for exact specifications by model.
