Part number: MAX3485
Manufacturer: HTC
File Size: 380.91KB
Download: 📄 Datasheet
Description: 10Mbps Half-Duplex RS-485/RS-422 Transceiver
* Operates from a Single 3.3V Supply
* Interoperable with +5.0V Logic
* −7V to 12V Common-Mode Input Voltage Range
* Three-State Outputs
* Driver/ Rec.
* Low Power RS-485 Systems
* Telecommunications
* Packet Switching
* Industrial-Control Local Area Netwo.

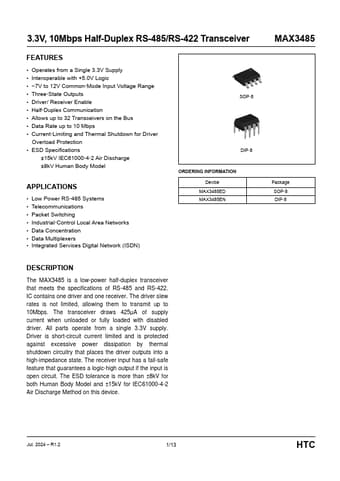

The MAX3485 is a low-power half-duplex transceiver that meets the specifications of RS-485 and RS-422. IC contains one driver and one receiver. The driver slew rates is not limited, allowing them to transmit up to 10Mbps. The transceiver draws 425µA .
