MAX232EN - 5V Dual channel RS-232 Drivers/Receivers

Product Overview

HTC

MAX232EN 5V Dual channel RS-232 Drivers/Receivers by HTC - Datasheet Preview — Datasheet preview – MAX232EN

Datasheet Details

Part number	MAX232EN
Manufacturer	HTC
File Size	196.62 KB
Description	5V Dual channel RS-232 Drivers/Receivers
Datasheet	MAX232EN Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX232EN, MAX232. Please refer to the document for exact specifications by model.

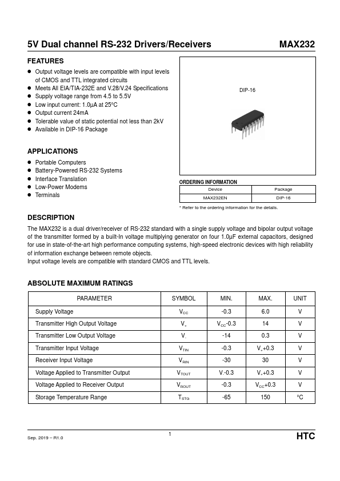

Additional preview pages of the MAX232EN datasheet.

Product details

Description

The MAX232 is a dual driver/receiver of RS-232 standard with a single supply voltage and bipolar output voltage of the transmitter formed by a built-In voltage multiplying generator on four 1.0µF external capacitors, designed for use in state-of-the-art high performance computing systems, high-speed electronic devices with high reliability of information exchange between remote objects.

Features

Output voltage levels are compatible with input levels of CMOS and TTL integrated circuits.
Meets All EIA/TIA-232E and V.28/V.24 Specifications.
Supply voltage range from 4.5 to 5.5V.
Low input current: 1.0µA at 25°C.
Output current 24mA.
Tolerable value of static potential not less than 2kV.
Available in DIP-16 Package MAX232 DIP-16.
