MAX232ESE - +5 V-Powered Multi-Channel RS-232 Drivers/Receivers

MAX232ESE Description

UMW MAX232ESE +5 V-Powered,Multi-Channel RS-232 Drivers/Receivers 1..
The UMW MAX232E have two drives and two receivers.

MAX232ESE Features

* Operate from Single +5 V Power Supply Guaranteed 120 kbps Data Rate Latchup Free ESD Protection ±2kV 5V + 10F 1 10F + C1+ C13 10F + 4 C2+ C25 11 TLL/CMOS Inputs 10 12 TLL/CMOS Outputs 9 + 10F 16 2 V+ V- 6 10F + 14 RS-232 7 Outputs 13 5k RS-232 Inputs 8 5k 15 UTD Semiconductor Co.

📥 Download Datasheet

Preview of MAX232ESE PDF

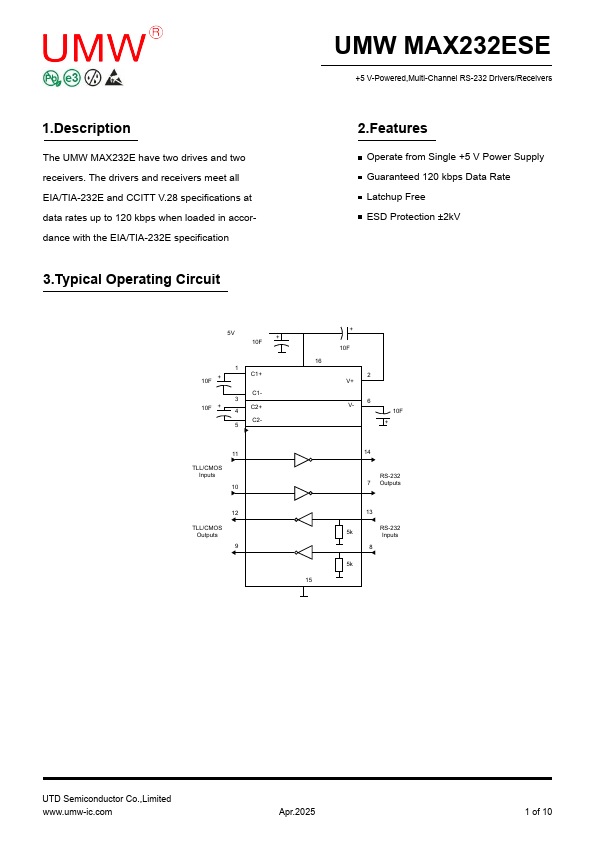

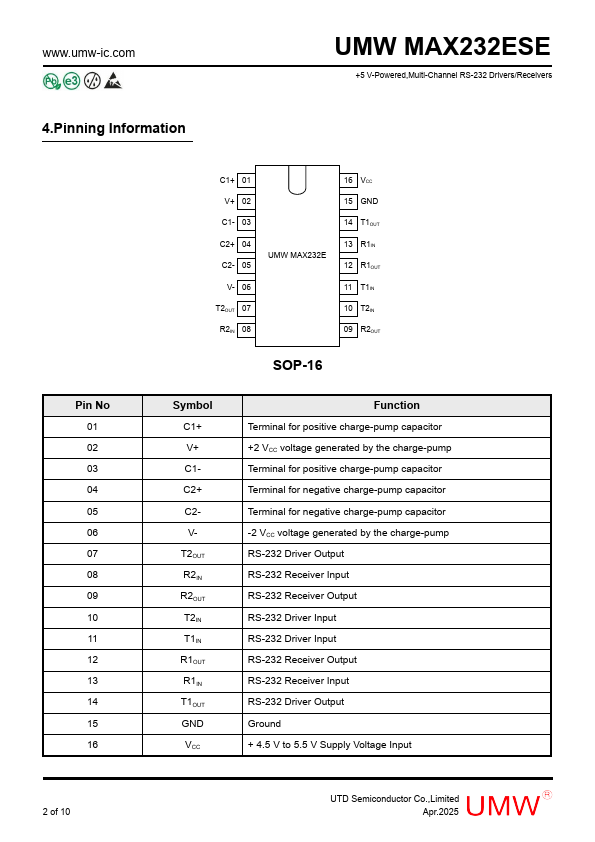

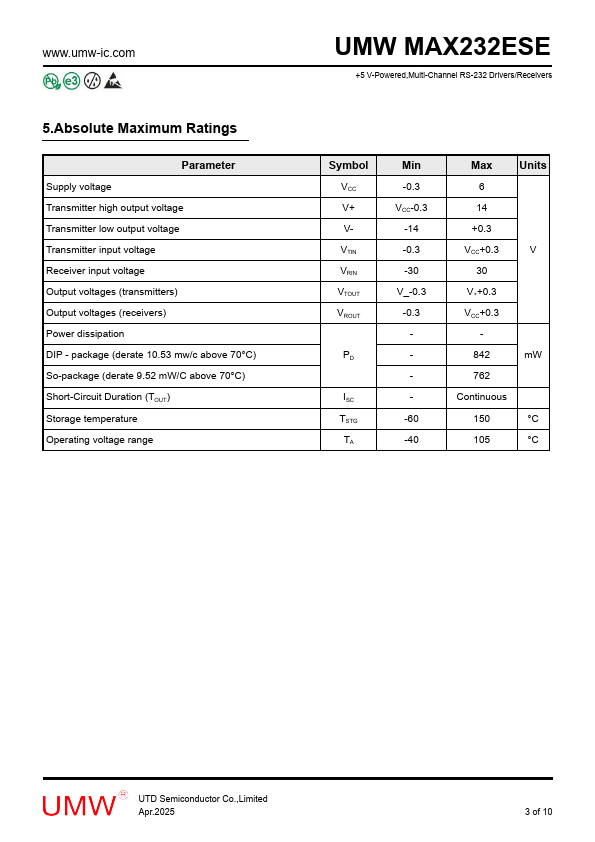

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX232ESE
Manufacturer
UMW
File Size
1.02 MB
Datasheet
MAX232ESE-UMW.pdf
Description
+5 V-Powered Multi-Channel RS-232 Drivers/Receivers
