MAX3485ESA - RS485/RS422 transceiver

Product Overview

Part number	MAX3485ESA
Manufacturer	UMW
File Size	2.55 MB
Description	RS485/RS422 transceiver
Datasheet	MAX3485ESA Datasheet

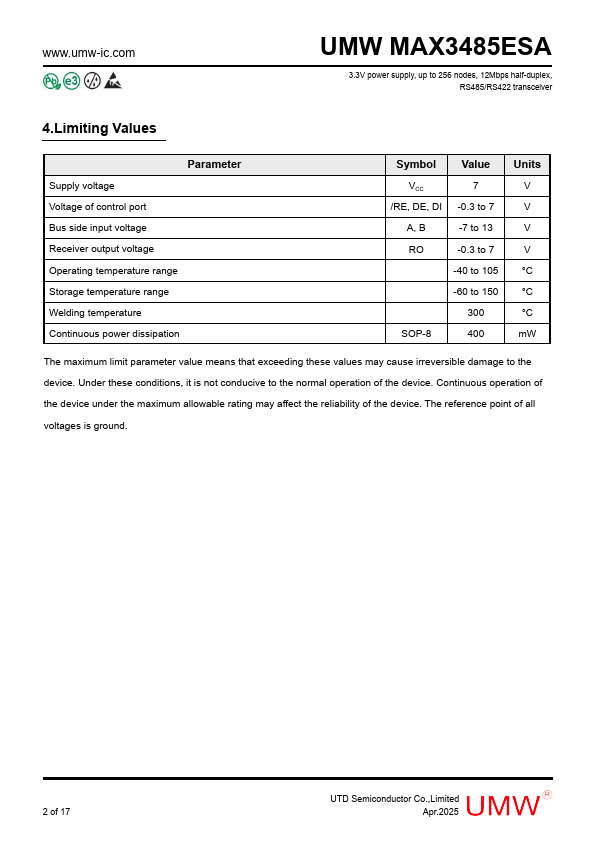

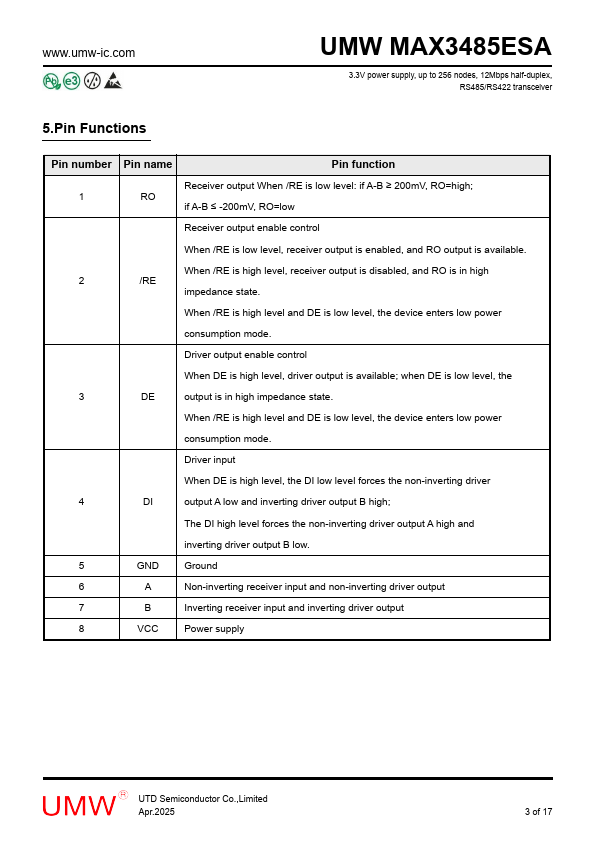

Additional preview pages of the MAX3485ESA datasheet.

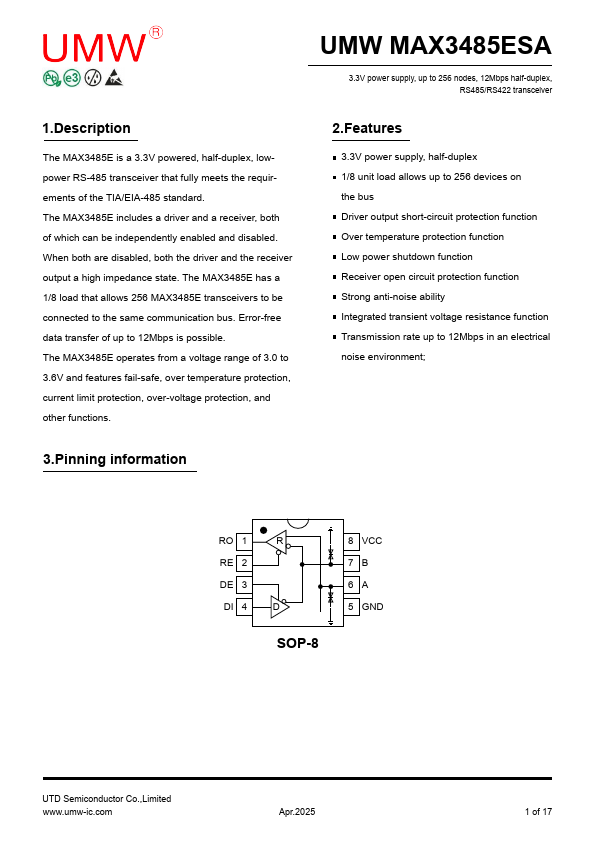

The MAX3485E is a 3.3V powered, half-duplex, lowpower RS-485 transceiver that fully meets the requirements of the TIA/EIA-485 standard.

fail-safe, over temperature protection, current limit protection, over-voltage protection, and other functions. 2.Features 3.3V power supply, half-duplex 1/8 unit load allows up to 256 devices on the bus Driver output short-circuit protection function Over temperature protection function Low power shutdown function Receiver open circuit protection function Strong anti-noise ability Integrated transient voltage resistance function Transmission rate up to 12Mbps in an electrical noise environment.
