MAX3232ESE - two receivers and two drivers

Product Overview

Part number	MAX3232ESE
Manufacturer	UMW
File Size	207.90 KB
Description	two receivers and two drivers
Datasheet	MAX3232ESE Datasheet

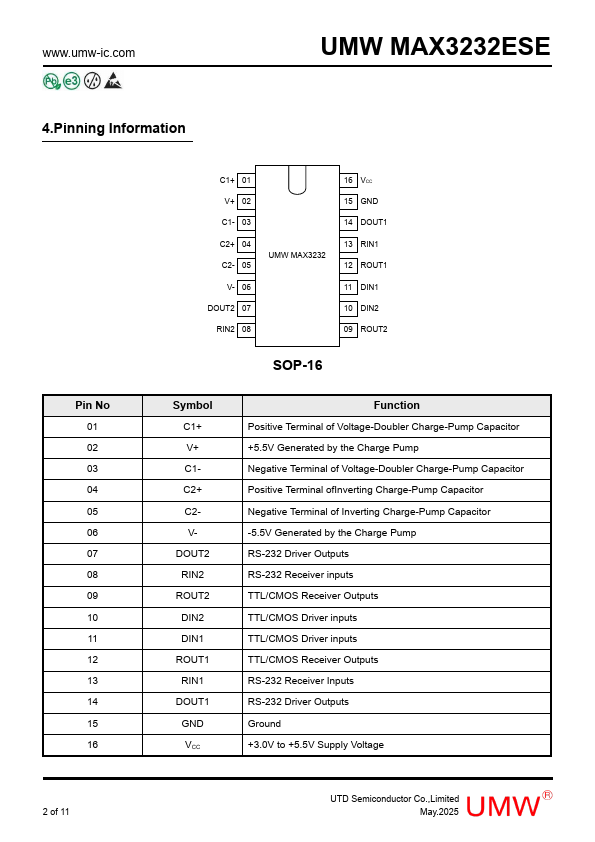

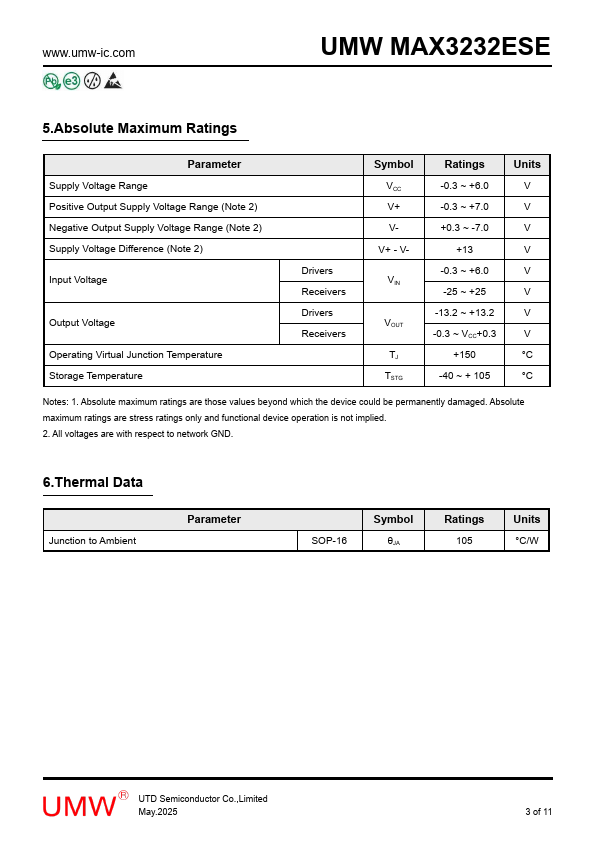

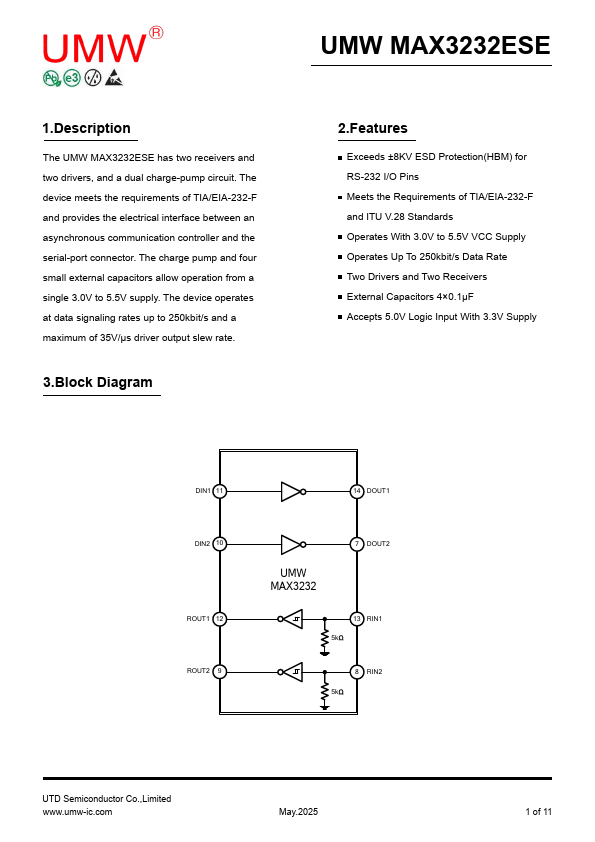

Additional preview pages of the MAX3232ESE datasheet.

The UMW MAX3232ESE has two receivers and two drivers, and a dual charge-pump circuit.

Exceeds ±8KV ESD Protection(HBM) for RS-232 I/O Pins Meets the Requirements of TIA/EIA-232-F and ITU V.28 Standards Operates With 3.0V to 5.5V VCC Supply Operates Up To 250kbit/s Data Rate Two Drivers and Two Receivers External Capacitors 4×0.1μF Accepts 5.0V Logic Input With 3.3V Supply DIN1 11 14 DOUT1 DIN2 10 ROUT1 12 ROUT2 9 UMW MAX3232 7 DOUT2 13 RIN1 5k 8 RIN2 5k UTD Semiconductor Co. ,Limited www. umw-ic. com May.2025 1 of 11 www. umw-ic. com UMW MAX3232ESE 4.Pinning Information.
