MAX485E - Slew-Rate-Limited RS-485/RS-422 Transceivers

MAX485E Description

UMW R MAX485E Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers General .
The MAX485 is low-power transceivers for RS-485 and RS422 communication.

MAX485E Features

* Low Quiescent Current: 300µA
* -7V to +12V Common-Mode Input Voltage Range
* Three-State Outputs
* 30ns Propagation Delays, 5ns Skew
* Full-Duplex and Half-Duplex Versions Available
* Operate from a Single 5V Supply
* Allows up to 32 Transceivers on the Bus
* Data r

📥 Download Datasheet

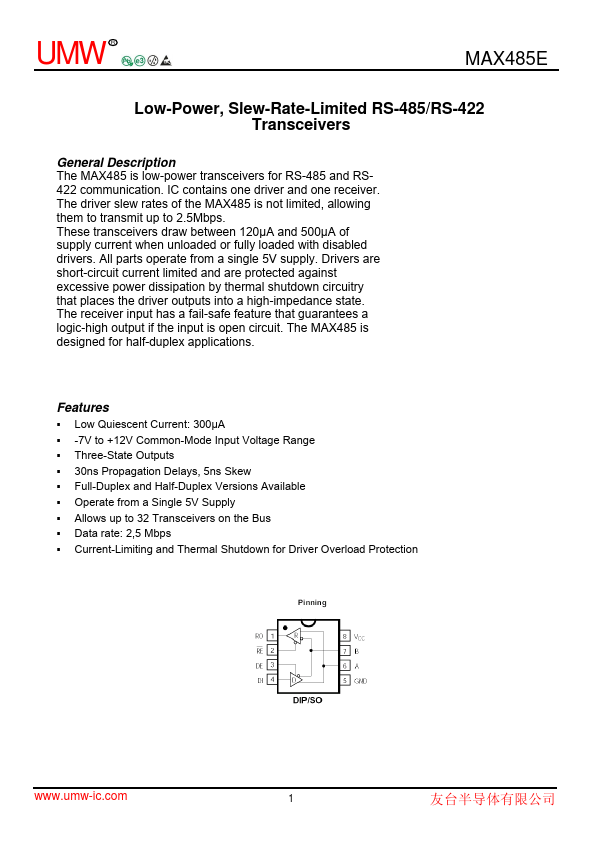

Preview of MAX485E PDF

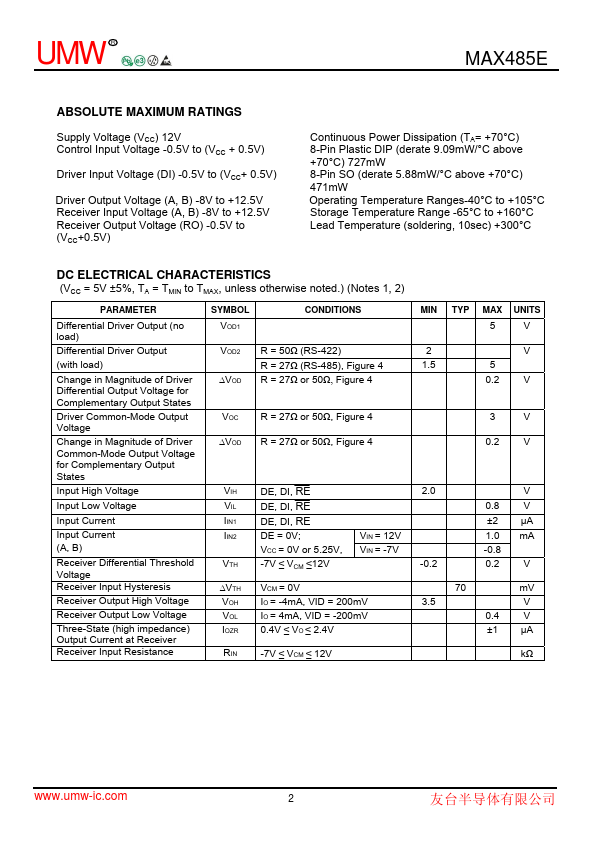

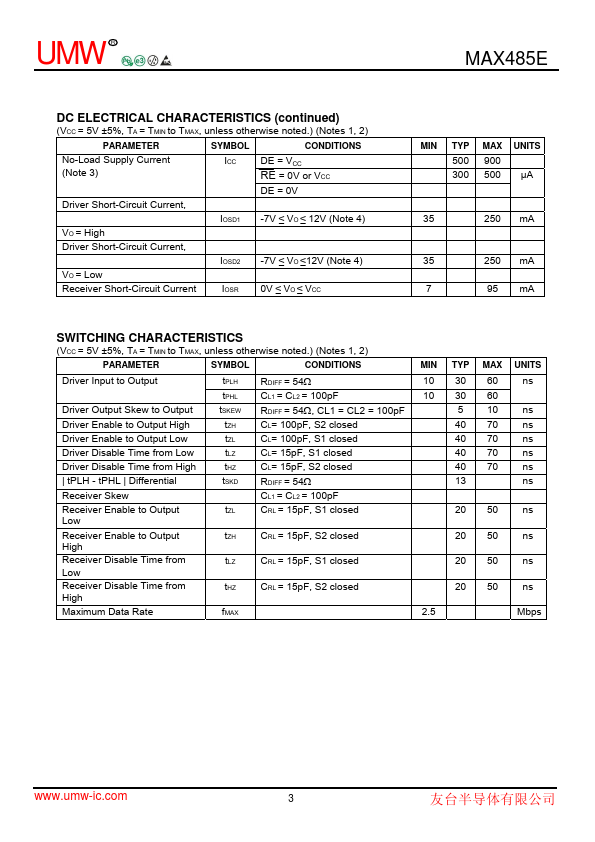

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX485E
Manufacturer
UMW
File Size
338.39 KB
Datasheet
MAX485E-UMW.pdf
Description
Slew-Rate-Limited RS-485/RS-422 Transceivers
