MAX232E

Dual RS-232 Driver and Receiver

Texas Instruments

MAX232E Features

* 1 Meets or Exceeds TIA/RS-232-F and ITU Recommendation V.28

* ESD Protection for RS-232 Bus Pins

* ±15-kV Human-Body Model (HBM)

* ±8-kV IEC61000-4-2, Contact Discharge

* ±15-kV IEC61000-4-2, Air-Gap Discharge

* Operates From a Single 5-V Power Supply

MAX232E General Description

The MAX232E is a dual driver and receiver that includes a capacitive voltage generator to supply RS232-F compliant voltage levels from a single 5-V supply. Each receiver converts RS-232 inputs to 5-V TTL/CMOS levels. This receiver has a typical threshold of 1.3 V, a typical hysteresis of 0.5 V, and .

MAX232E Datasheet (1.67 MB)

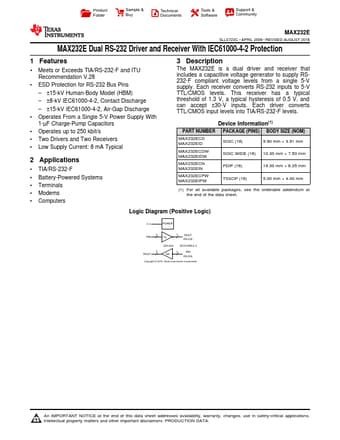

MAX232E Datasheet Preview — Preview of MAX232E PDF

Datasheet Details

Part number:

MAX232E

Manufacturer:

Texas Instruments ↗

File Size:

1.67 MB

Description:

Dual rs-232 driver and receiver.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community MAX232E SLLS723C

* APRIL 2006

* REVISED AUGU.
