MAX202C, MAX202 5-V Dual RS-232 Line Driver/Receiver

MAX202C Description

MAX202 SLLS576G * JULY 2003 * REVISED FEBRUARY 2024 MAX202 5-V Dual RS-232 Line Driver and Receiver With ±15-kV ESD Protection 1 Feat.
The MAX202 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15kV ESD protection pin to pin (serial-port.

MAX202C Features

* Meets or exceeds the requirements of TIA/EIA-232-F and ITU v.28 standards
* ESD protection for RS-232 bus pins: ±15kV human-body model
* Operates at 5V VCC supply
* Operates up to 120kbit/s
* Two drivers and two receivers
* Latch-up performance excee

MAX202C Applications

* Battery-powered systems
* Notebooks
* Laptops
* Palmtop PCs

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX202C, MAX202. Please refer to the document for exact specifications by model.

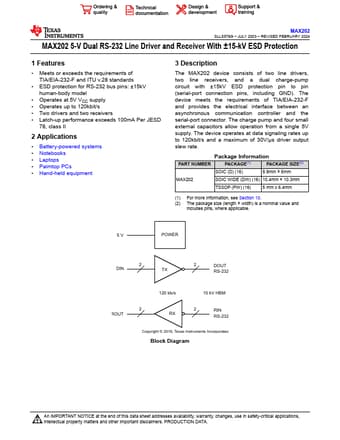

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX202C, MAX202
Manufacturer
Texas Instruments ↗
File Size
1.56 MB
Datasheet
MAX202-etcTI.pdf
Description
5-V Dual RS-232 Line Driver/Receiver
Note
This datasheet PDF includes multiple part numbers: MAX202C, MAX202.
Please refer to the document for exact specifications by model.
