MAX202I

The MAX202I is 5-V Dual RS-232 Line Driver/Receiver designed by Texas Instruments.

Product Overview

Texas Instruments

Datasheet Details

Part number	MAX202I, MAX202
Manufacturer	Texas Instruments
File Size	1.56 MB
Description	5-V Dual RS-232 Line Driver/Receiver
Datasheet	MAX202-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: MAX202I, MAX202. Please refer to the document for exact specifications by model.

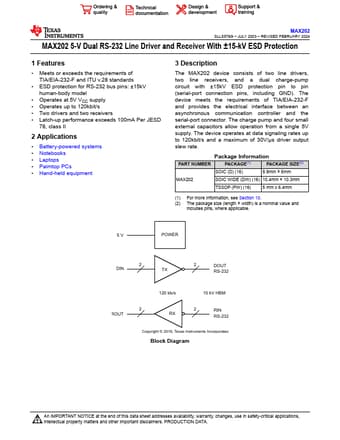

Additional preview pages of the MAX202I datasheet.

Product details

Description

The MAX202 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15kV ESD protection pin to pin (serial-port connection pins, including GND).

Features

Meets or exceeds the requirements of TIA/EIA-232-F and ITU v.28 standards.
ESD protection for RS-232 bus pins: ±15kV human-body model.
Operates at 5V VCC supply.
Operates up to 120kbit/s.
Two drivers and two receivers.
Latch-up performance exceeds 100mA Per JESD 78, class II 2.
