MAX2023 - High Dynamic Range Direct Up-/Down Conversion

Product Overview

Maxim Integrated Products

Datasheet Details

Part number	MAX2023
Manufacturer	Maxim Integrated Products
File Size	361.06 KB
Description	High Dynamic Range Direct Up-/Down Conversion
Datasheet	MAX2023 Datasheet

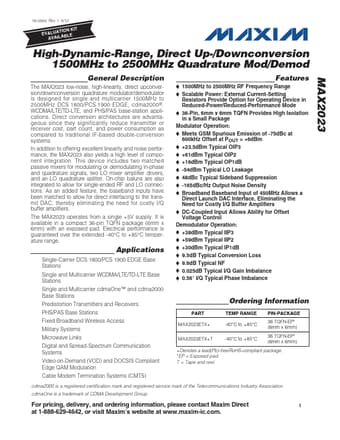

Additional preview pages of the MAX2023 datasheet.

Product details

Description

The MAX2023 low-noise, high-linearity, direct upconversion/downconversion quadrature modulator/demodulator is designed for single and multicarrier 1500MHz to 2300MHz DCS 1800/PCS 1900 EDGE, cdma2000 ® , WCDMA, and PHS/PAS base-station applications.

Features

o 1500MHz to 2300MHz RF Frequency Range o Scalable Power: External Current-Setting Resistors Provide Option for Operating Device in Reduced-Power/Reduced-Performance Mode o 36-Pin, 6mm x 6mm TQFN Provides High Isolation in a Small Package Modulator Operation: o Meets GSM Spurious Emission of -75dBc at 600kHz Offset at POUT = +6dBm o +23.5dBm Typical OIP3 o +61dBm Typical OIP2 o +16dBm Typical OP1dB o -54dBm Typical LO Leakage o 48dBc Typical Sideband Suppression o -165dBc/Hz Output Noise Density.
